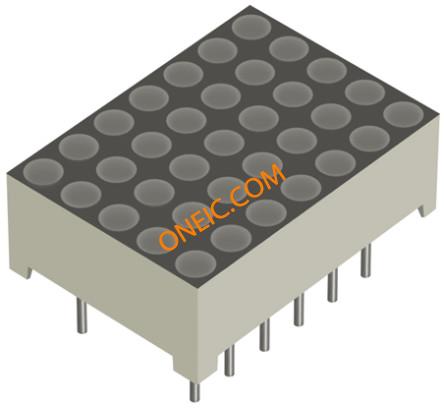

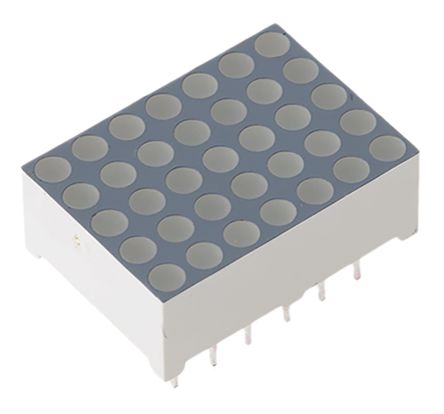

TA07-11GWA
| Manufacturer | |
| Description | LED Displays & Accessories Dot Matrix Grn 568nm Common Anode LED MATRIX 5X7 0.7" 565NM GRN Green 5x7 0.7in CA, TA07-11GWA 18MMDOTMATDISPGRNCA Display: LED; matrix; 5x7; green; 3-8mcd; anode; 17.78x12.7mm Displays Dot Matrix Size : 0.7"(18mm) Resolution : 5X7 Color : Green Luminous Intensity (Typ.) : 12000 ucd @10mA LED dot display green 5 x 7 dots, TA07-11GWA, Kingbright Kingbright TA07 系列 共阳 7 x 5点阵 绿色 LED 显示器, 12 mcd, 17.6mm高字符 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | LED Displays Dot Matrix |
| Product Category | LED Displays & Accessories | Standard Package | 28 |
| Factory Pack Quantity | 28 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| LED | 绿色 | Resolution | 5X7 |
| Wavelength | 565 nm | Display Type | 5 x 7 Dot Matrix |
| Luminous Flux | 3-8mcd | Voltage - Supply | 2.2V |
| Wavelength - Peak | 565 | Millicandela Rating | 12mcd |
| Wavelength - Dominant | 568nm | Current - On State (It (AV)) (Max) | 20 |
| MSCP (Mean Spherical Candle Power) | 12mcd | Common Mode Transient Immunity (Min) | 阳极 |
| Voltage - Anode - Cathode (Vak)(Max) | anode | ||
Mechanical
| Size | 0.7"(18mm) | Color | Green |
| Depth | 6.4mm | Width | 12.7mm |
| Weight | 2.83 g | Material | GaP |
| LED Color | Green | Packaging | Bulk |
| Case Color | grey | Common Pin | Common Anode |
| Lens Color | White Diffused | Light Color | green |
| Height (Max) | 17.78mm | Housing Color | 灰色 |
| Mounting Type | PCB Through Hole | Width - Inside | 5 |
| Depth - Overall | 6.4mm | Package Quantity | 56 |
| Size / Dimension | 0.70" L x 0.50" W x 0.25" H (17.74mm x 12.66mm x 6.30mm) | Color - Background | Grey |
| Color - Connectors | green | Dimensions - Panel | 7 x 5 |
| Illumination Color | Green | Number of Positions | 1 |
| Width - Outer Edges | 12.7mm | Dimensions - Overall | 17.78 x 12.7 x 6.4mm |
| Height - Seated (Max) | 7 | ||
Product Info
| Spg | 56 | Type | Displays |
| Series | TA07 | Dot Size | 5 |
| Polarity | C.A. | Technology | GaP |
| Card Standard | Dot Matrix | Configuration | 5 x 7 |
| Character Size | 17.6mm | Display Digits | 5x7 |
| Channels per IC | 5 x 7 | Number of Units | 1 |
| Digit/Alpha Size | 12.5 x 17.6mm | Internal Connection | Common Cathode Row, Common Anode Column |
| Digits or Characters | 1 | Matrix (Columns x Rows) | 5 x 7 dots |
Environmental
| Air Flow - High | 7 | Operating Temperature | + 85 C |
| Luminous Flux @ Current/Temperature | 12000 μcd | ||
