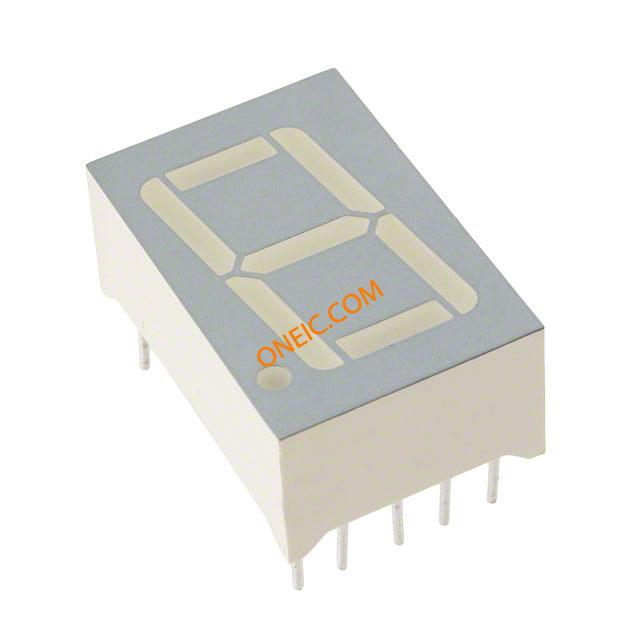

SA56-11YWA
| Manufacturer | |
| Description | LED Displays & Accessories YELLOW DIFFUSED 1 DIGIT DISPLAY 590NM YLW NUMERIC 0.56" LED DISPLAY, 0.56", YELLOW, CA Display: LED; single 7-segment; 14.22mm; yellow; 1.9-4.7mcd; anode Numeric Display Mounting : Thruhole Number of Digits : 1 Size : .56" Color : Yellow Luminous Intensity (Typ.) : 4700 ucd @10mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | LED Displays Segmented |
| Product Category | LED Displays & Accessories | Standard Package | 40 |
| Factory Pack Quantity | 40 | ||
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85414010 | ||
Electrical
| Wavelength | 588 nm | Display Type | 7 Segment |
| Luminous Flux | 1.9-4.7mcd | Current - Output | 20mA |
| Voltage - Supply | 2.1 V | Wavelength - Peak | 590nm |
| LED Forward Voltage | :2.1V | Millicandela Rating | 6.5mcd |
| Power Dissipation (Max) | 75mW | Current - Dark (Id) (Max) | :10mA |
| Voltage - Peak Reverse (Max) | :5V | Current - Peak Pulse (8/20us) | :20mA |
| Current - DC Forward (If) (Max) | :20mA | Radiant Intensity (Ie) Min @ If | :5.6mcd |
| Current - Average Rectified (Io) | 30 mA | Voltage - Anode - Cathode (Vak)(Max) | anode |
Mechanical
| Color | Yellow | Depth | :8mm |
| Width | :12.5mm | Length | :19.05mm |
| Weight | 0.015 | LED Color | :Yellow |
| Packaging | Tube | Common Pin | Common Anode |
| Lead Spacing | :2.54mm | Pitch - Post | :15.24mm |
| Mounting Type | THT | Package / Case | 10-DIP (0.600", 15.24mm) |
| Background Color | :Grey | Package Quantity | 80 |
| Size / Dimension | 0.750" H x 0.500" W x 0.315" D (19.05mm x 12.70mm x 8.00mm) | Pitch - Connector | 2.54mm |
| Color - Connectors | yellow | Illumination Color | Yellow |
Product Info
| Spg | 80 | Character Size | 0.56 in |
| Number of Units | 1 | Character Format | :8. |
| Digit/Alpha Size | 0.56" (14.22mm) | Digits or Characters | 1 |
| Number of Characters | 1 | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 4700 ucd |
Documents & Media
Similar Parts

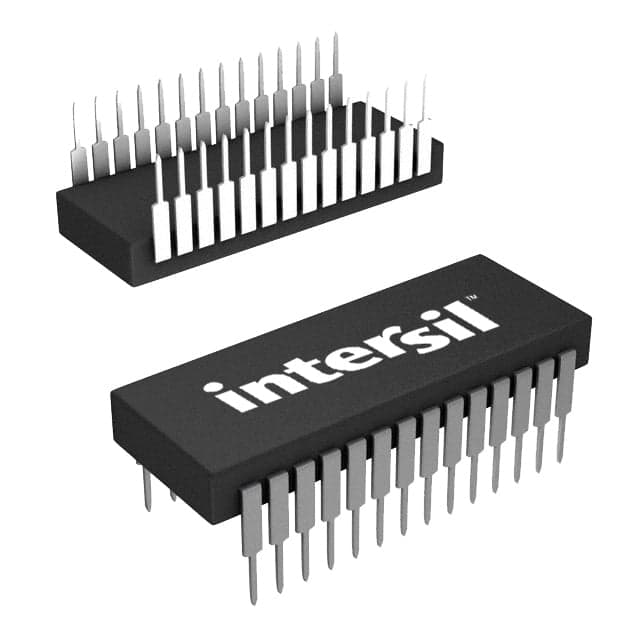

ICM7218DIJI
