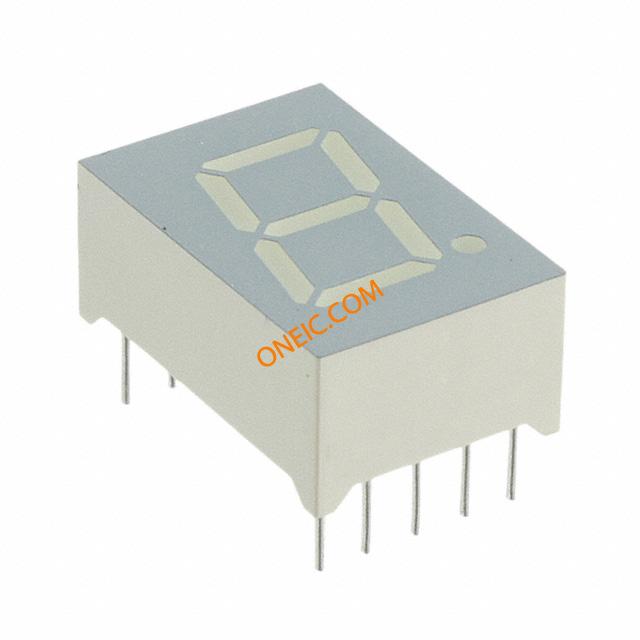

SA05-11SRWA
| Manufacturer | |
| Description | LED Displays & Accessories Single Red 640nm Common Anode DISPLAY 660NM RED ALPHANUM 0.5" Red 7-segment LED, SA05-11SRWA 0.5in 0.5INLEDDISPREDCA Numeric Display Mounting : Thruhole Number of Digits : 1 Size : .5" Color : Red Luminous Intensity (Typ.) : 29500 ucd @10mA Kingbright 7段 共阳 红色 LED 数码管, 34 mcd, 右侧小数点, 12.7mm高字符 |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 51 Days | Subcategory | LED Displays Segmented |
| Product Category | LED Displays & Accessories | Standard Package | 40 |
| Factory Pack Quantity | 40 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| LED | 红色 | Wavelength | 640 nm |
| Display Type | 7 Segment | Luminous Flux | 29500 ucd @10mA |
| Current - Output | 20mA | Voltage - Supply | 1.85 V |
| Wavelength - Peak | 660nm | Millicandela Rating | 34mcd |
| Wavelength - Dominant | 640nm | Power - Average Forward | 75 mW |
| Power Dissipation (Max) | 75mW | Current - Average Rectified (Io) | 20 mA |
| Common Mode Transient Immunity (Min) | 阳极 | ||
Mechanical
| Size | .5" | Color | Red |
| Depth | 8mm | Width | 12.7mm |
| Material | GaAlAs | LED Color | Red |
| Packaging | Bulk | Common Pin | Common Anode |
| Lens Color | White Diffused | Height (Max) | 19mm |
| Housing Color | 灰色 | Mounting Type | PCB Through Hole |
| Package / Case | 10-DIP (0.600", 15.24mm) | Depth - Overall | 8mm |
| Size / Dimension | 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) | Color - Background | Grey |
| Illumination Color | Red | Number of Positions | 1 |
| Width - Outer Edges | 12.7mm | Dimensions - Overall | 19 x 12.7 x 8mm |
| Height - Seated (Max) | 19mm | ||
Product Info
| Type | Displays | Viewing Area | 7.3 mm x 12.7 mm |
| Card Standard | Numeric | Character Size | 7.3 mm x 12.7 mm |
| Number of Bands | 右侧 | Digit/Alpha Size | 0.50" (12.70mm) |
| Number of Segments | 7 | Digits or Characters | 1 |
| Number of Characters | 1 | Other Specifications | Left Side |
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 29500 ucd |
