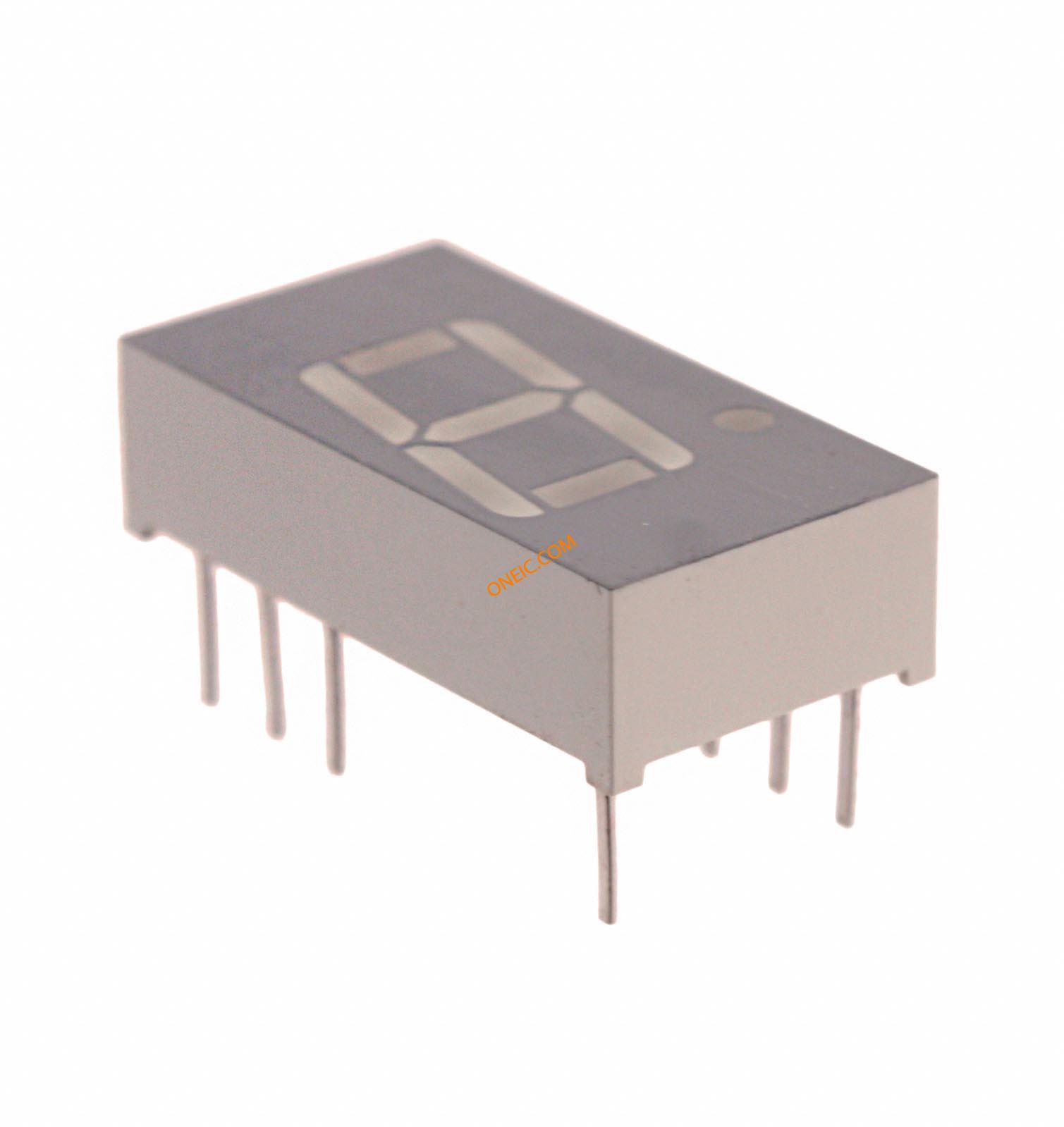

SA04-11GWA
| Manufacturer | |
| Description | LED Displays & Accessories .4 GREEN DISPLAY 0.4" SGL 568NM GRN Display: LED; single 7-segment; 10.16mm; green; 3.6-12mcd; anode Numeric Display Mounting : Thruhole Number of Digits : 1 Size : .4" Color : Green Luminous Intensity (Typ.) : 12000 ucd @10mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | LED Displays Segmented |
| Product Category | LED Displays & Accessories | Standard Package | 27 |
| Factory Pack Quantity | 27 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Wavelength | 568 nm | Display Type | 7 Segment |
| Luminous Flux | 3.6-12mcd | Current - Output | 20mA |
| Voltage - Supply | 2.2 V | Wavelength - Peak | 565nm |
| Millicandela Rating | 8.6mcd | Wavelength - Dominant | 568nm |
| Power - Average Forward | 62.5 mW | Power Dissipation (Max) | 62.5mW |
| Current - Average Rectified (Io) | 20 mA | Voltage - Anode - Cathode (Vak)(Max) | anode |
Mechanical
| Size | .4" | Color | Green |
| Weight | 2.09 g | Material | GaP |
| Packaging | Tube | Common Pin | Common Anode |
| Lens Color | White Diffused | Mounting Type | THT |
| Package / Case | 14-DIP (0.295", 7.50mm) | Package Quantity | 27 |
| Size / Dimension | 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) | Pitch - Connector | 2.54mm |
| Color - Connectors | green | Illumination Color | Green |
Product Info
| Spg | 27 | Type | Displays |
| Viewing Area | 5.58 mm x 10.16 mm | Card Standard | Numeric |
| Character Size | 5.58 mm x 10.16 mm | Number of Units | 1 |
| Digit/Alpha Size | 0.40" (10.16mm) | Digits or Characters | 1 |
| Number of Characters | 1 | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 12000 ucd |
