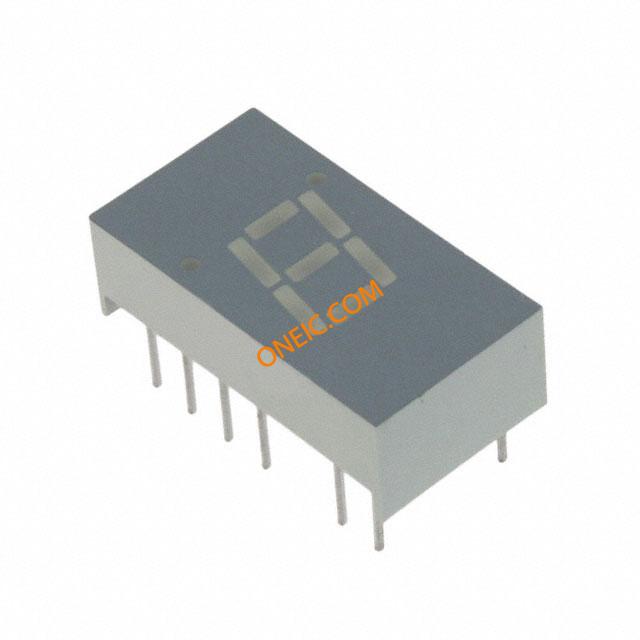

SA03-11GWA
| Manufacturer | |
| Description | LED Displays & Accessories Single Green 568nm Common Anode DISPLAY 0.3" SGL 568NM GRN Display: LED; single 7-segment; 7.62mm; green; 3-8mcd; anode Numeric Display Mounting : Thruhole Number of Digits : 1 Size : .3" Color : Green Luminous Intensity (Typ.) : 8000 ucd @10mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Single Digit Numeric Display | Lead Time | 47 Days |
| Subcategory | LED Displays Segmented | Product Category | LED Displays & Accessories |
| Standard Package | 26 | Factory Pack Quantity | 26 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Wavelength | 568 nm | Display Type | 7 Segment |
| Luminous Flux | 3-8mcd | Current - Output | 20mA |
| Voltage - Supply | 2.2 V | Wavelength - Peak | 565nm |
| Millicandela Rating | 11mcd | Current Rating (Max) | 20mA |
| Wavelength - Dominant | 568nm | Power - Average Forward | 62.5 mW |
| Power Dissipation (Max) | 62.5mW | Current - Average Rectified (Io) | 20 mA |
| MSCP (Mean Spherical Candle Power) | 11mcd | Voltage - Anode - Cathode (Vak)(Max) | anode |
Mechanical
| Size | .3" | Color | Green |
| Weight | 2.29 g | Material | GaP |
| Packaging | Bulk | Common Pin | Common Anode |
| Lens Color | White Diffused | 1st Connector | Common Anode |
| Mounting Type | THT | Package / Case | 14-DIP (0.300", 7.62mm) |

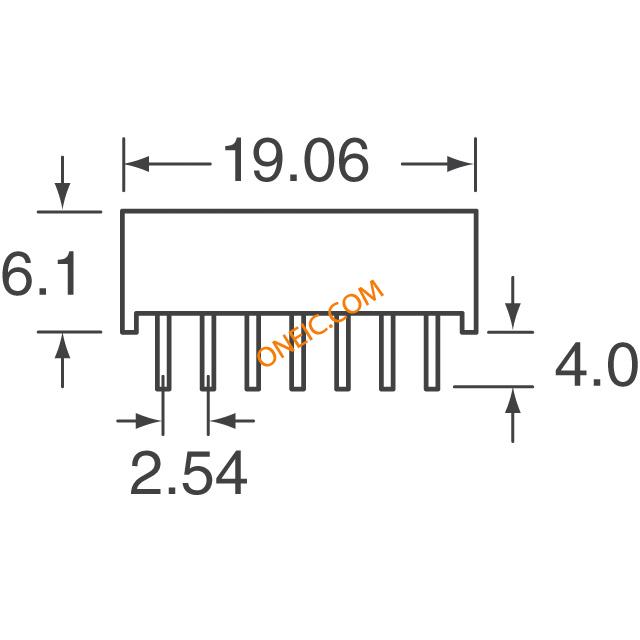

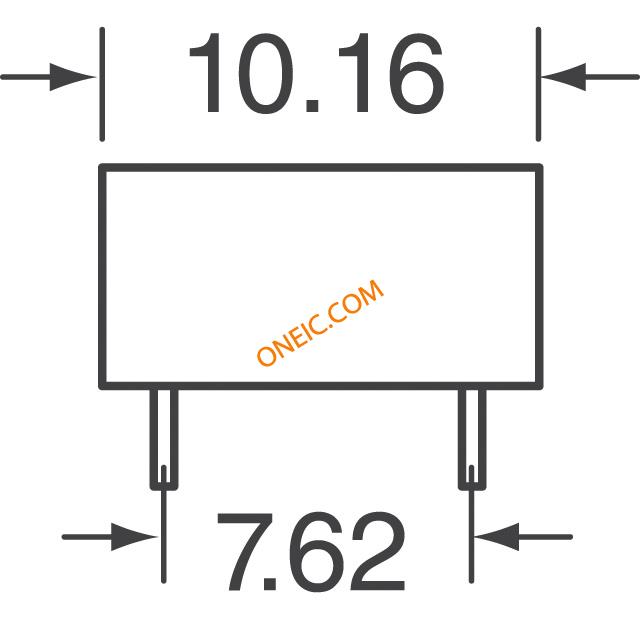

| Package Quantity | 26 | Size / Dimension | 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) |

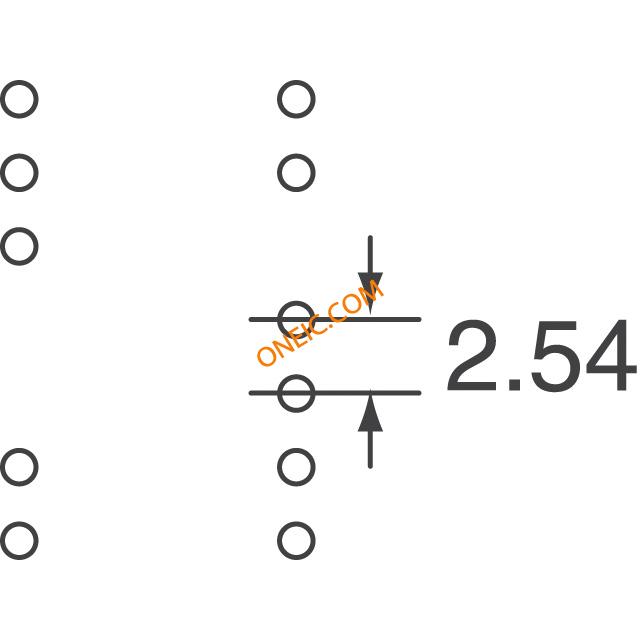

| Pitch - Connector | 2.54mm | Color - Connectors | green |
| Illumination Color | Green | ||
Product Info
| Spg | 26 | Type | Displays |

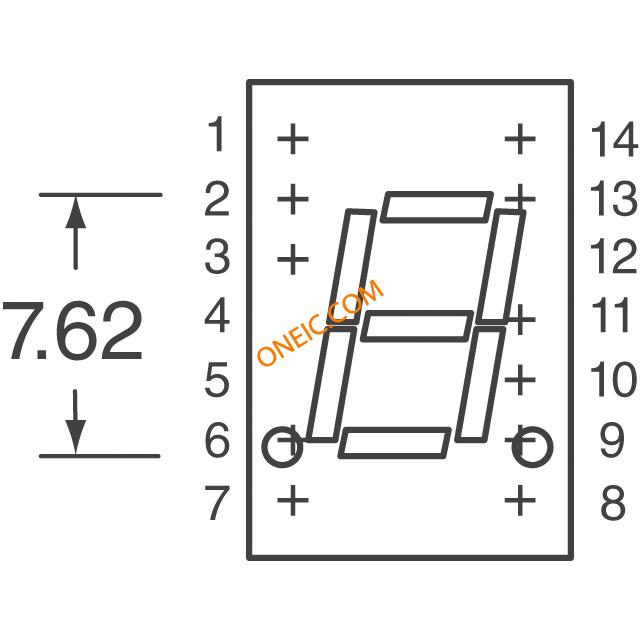

| Viewing Area | 5.11 mm x 7.62 mm | Card Standard | Numeric |
| Character Size | 7.62 mm | Number of Units | 1 |
| Digit/Alpha Size | 0.30" (7.62mm) | Digits or Characters | 1 |
| Number of Characters | 1 | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 11000 mcd |
