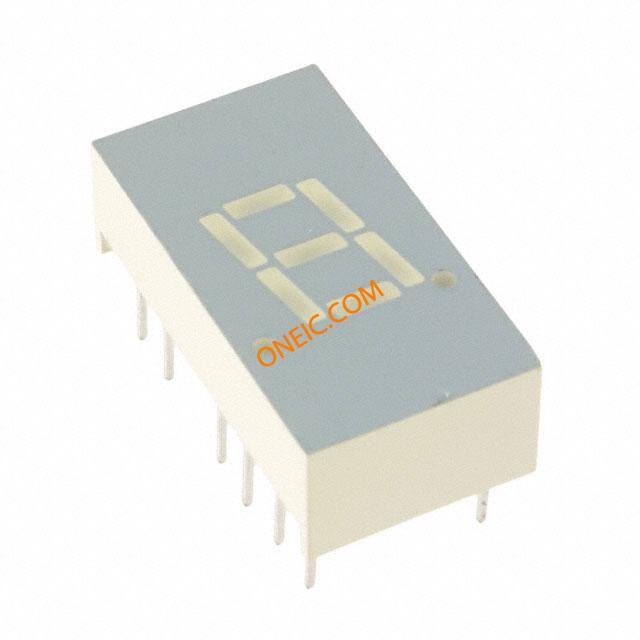

SA03-11EWA
| Manufacturer | |
| Description | LED Displays & Accessories HI EFF RED DIFFUSED 1 DIGIT DISPLAY 0.3" SGL 625NM RED Display: LED; single 7-segment; 7.62mm; red; 1.9-6.4mcd; anode Numeric Display Mounting : Thruhole Number of Digits : 1 Size : .3" Color : Red Luminous Intensity (Typ.) : 8100 ucd @10mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 56 Days | Subcategory | LED Displays Segmented |
| Product Category | LED Displays & Accessories | Standard Package | 26 |
| Factory Pack Quantity | 26 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Wavelength | 625 nm | Display Type | 7 Segment |
| Luminous Flux | 1.9-6.4mcd | Current - Output | 20mA |
| Voltage - Supply | 2 V | Wavelength - Peak | 627nm |
| Millicandela Rating | 8.1mcd | Wavelength - Dominant | 625nm |
| Power Dissipation (Max) | 75mW | Current - Average Rectified (Io) | 30 mA |
| Voltage - Anode - Cathode (Vak)(Max) | anode | ||
Mechanical
| Size | .3" | Color | Red |
| Weight | 2.3 g | Material | GaAsP/GaP |
| Packaging | Tube | Common Pin | Common Anode |
| Lens Color | White Diffused | Mounting Type | THT |
| Package / Case | 14-DIP (0.300", 7.62mm) | Package Quantity | 26 |
| Size / Dimension | 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) | Pitch - Connector | 2.54mm |
| Color - Connectors | red | Illumination Color | Red |
Product Info
| Spg | 26 | Type | Displays |
| Card Standard | Numeric | Character Size | 0.3 in |
| Number of Units | 1 | Digit/Alpha Size | 0.30" (7.62mm) |
| Digits or Characters | 1 | Number of Characters | 1 |
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 6400 ucd |
