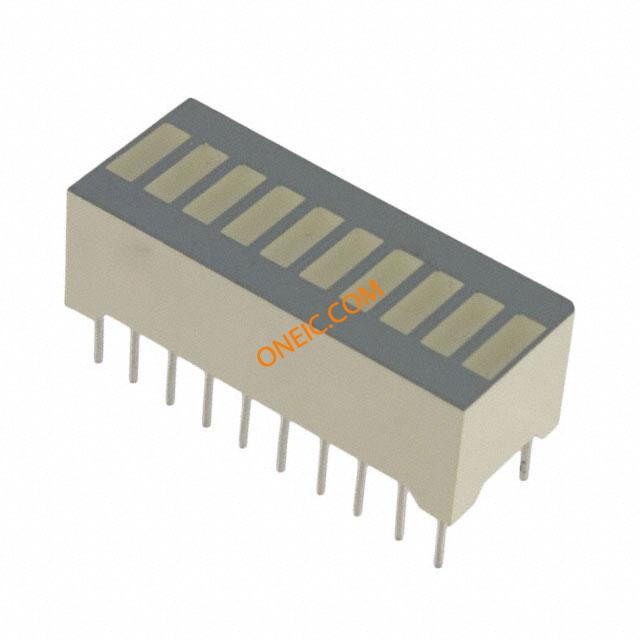

DC10EWA
| Manufacturer | |
| Description | LED Displays & Accessories HI EFF RED DIFFUSED 10 SEGMENT LED BAR GRAPH 10SEG 627NM RED LED Bars and Arrays HI EFF RED DIFFUSED 10 SEGMENT 10SEGMENTREDLEDBARGRAPH,DP,TUBE Displays Bar Graph Number of Segments : 10 Color : Red Luminous Intensity (Typ.) : 9000 ucd @10mA |
| Category |
对参数有疑问？问 AI 助手
Business
| Lead Time | 44 Days | Other Names | 754-1176-5 |
| Subcategory | LED Light Bars, Arrays and Bar Graphs | Product Category | LED Displays & Accessories |
| Standard Package | 20 | Factory Pack Quantity | 20 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current | 30mA | Wavelength | 625 nm |
| Display Type | Bar Graph | Luminous Flux | 9000 ucd @10mA |
| Voltage Rating | 2V | Voltage - Supply | 2 V |
| Wavelength - Peak | 627nm | LED Forward Current | 30mA |
| Millicandela Rating | 9mcd | Current Rating (Max) | 30mA |
| Wavelength - Dominant | 625nm | Current - Average Rectified (Io) | 30 mA |
| MSCP (Mean Spherical Candle Power) | 9mcd | ||
Mechanical
| Color | Red (x 10) | Material | GaAsP/GaP |
| Packaging | Tube | Common Pin | Common Anode |
| Lens Color | White | Mounting Type | Through Hole |
| Mounting Style | Thru-Hole | Lens Style/Size | Rectangle, 5.08mm x 1.78mm |
| Illumination Color | Red | ||
Product Info
| Type | Displays | Lens Type | Diffused, White |
| Card Standard | Bar Graph | Configuration | Bar - 10 Wide, DIP |
| Channels per IC | Bar - 10 Wide, DIP | Industry Aliases | DC-10EWA |
| Number of Segments | 10 | Digits or Characters | 10 |
| Output Configuration | Through Hole | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 9000 ucd |
