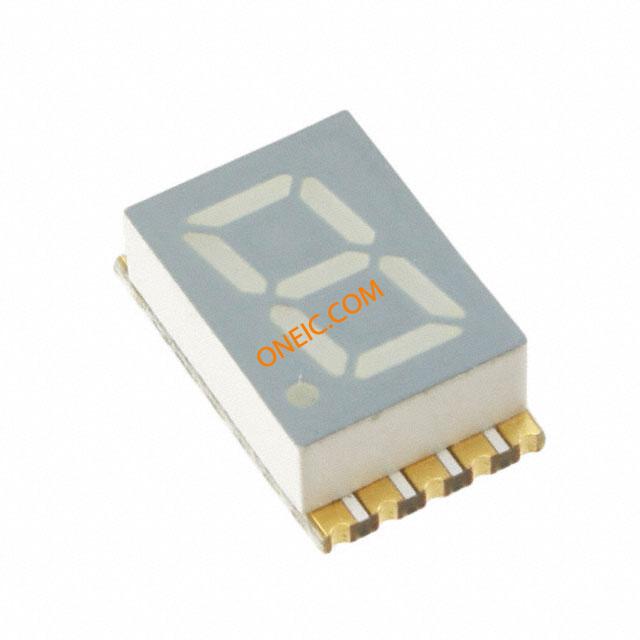

ACSC03-41EWA-F01
| Manufacturer | |
| Description | LED Displays & Accessories Red 627nm Single Common Cathode DISPLAY 0.3" 627NM SGL RED SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 754-1037-1 | Product Category | LED Displays & Accessories |
| Standard Package | 550 | Factory Pack Quantity | 550 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Wavelength | 625 nm | Display Type | 7 Segment |
| Current - Output | 20mA | Voltage - Supply | 2 V |
| Wavelength - Peak | 627nm | Millicandela Rating | 4.21mcd |
| Power - Average Forward | 75 mW | Power Dissipation (Max) | 75mW |
| Current - Average Rectified (Io) | 20 mA | ||
Mechanical
| Color | Red | Packaging | Reel |
| Common Pin | Common Cathode | Package / Case | 10-SMD, No Lead |

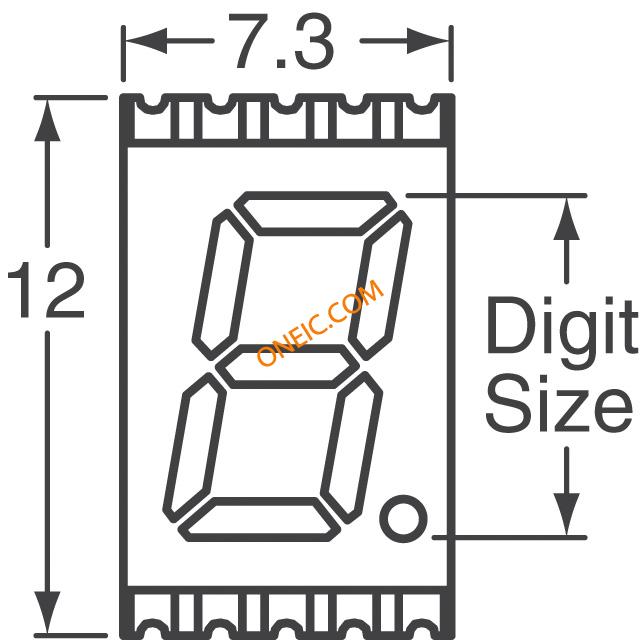

| Size / Dimension | 0.394" H x 0.287" W x 0.148" D (10.00mm x 7.30mm x 3.75mm) | Illumination Color | Red |
Product Info
| Viewing Area | 4.22 mm x 7.62 mm | Character Size | 4.22 mm x 7.62 mm |
| Digit/Alpha Size | 0.30" (7.62mm) | Digits or Characters | 1 |
| Number of Characters | 1 | ||
Environmental
| Operating Temperature | + 85 C | Luminous Flux @ Current/Temperature | 4210 ucd |
