AAD1-9090SE28ZC-S
| Manufacturer | |

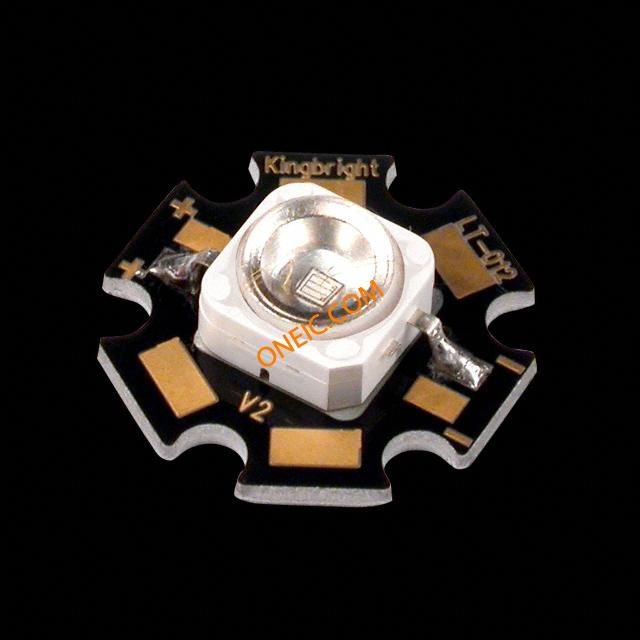

| Description | High Power LEDs - Single Color Reddish-Org Wtr Clr 625nm on Starboard LED RED/OR 1W XPOWER W/STAR BRD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 754-1337-5 | Product Category | High Power LEDs - Single Color |
| Standard Package | 25 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage | 2.5V | Wavelength | 625 nm |
| Luminous Flux | 35 lm | Power - Rated | 1 W |
| Viewing Angle | 100 deg | Current - Output | 350mA |
| Driver Circuitry | No | LED Forward Current | 350 mA |
| LED Forward Voltage | 2.5 V | Current Rating (Max) | 350mA |
Mechanical
| Color | Orange-Red | Packaging | Bulk |
| Lens Color | Water Clear | Mounting Style | Screw |
| Connector Usage | Yes | Illumination Color | Orange |
Product Info
| Configuration | Star | ||
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | + 100 C |
| Luminous Flux @ Current/Temperature | 12 cd | ||
