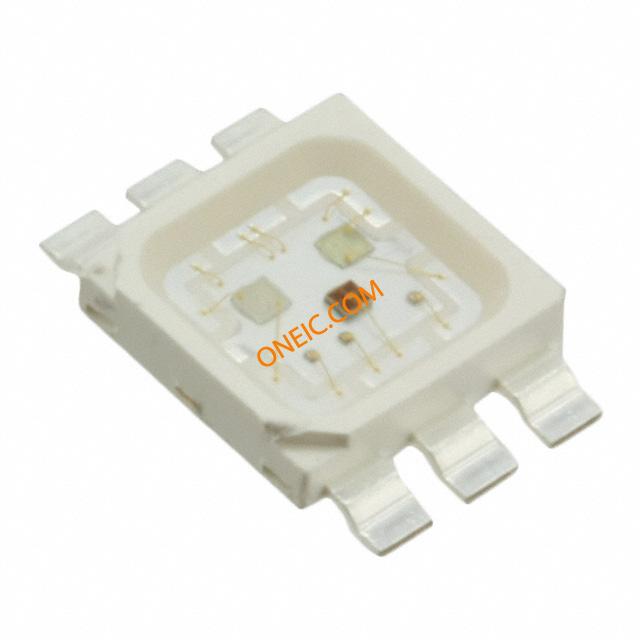

AAAF5051-03
| Manufacturer | |
| Description | High Power LEDs - Multi-Color RGB 624/525/450nm 9K/20K/4500 mcd LED RED-ORANGE/BLUE/GREEN SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 754-1486-6 | Product Category | High Power LEDs - Multi-Color |
| Standard Package | 1 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Optic Size | 5 mm x 5 mm x 1.3 mm | Wavelength | 624nm, 525nm, 450nm |
| Luminous Flux | 10000 mlm, 20000 mlm, 5000 mlm | Power - Rated | 0.5 W |
| Viewing Angle | 120 deg | Current - Output | 120mA Red, 150mA Green, 150mA Blue |
| Voltage - Supply | 2.3V Red, 3.5V Green, 3.5V Blue | LED Forward Current | 120 mA, 150 mA, 150 mA |
| LED Forward Voltage | 2.3 V, 3.5 V, 3.5 V | Current Rating (Max) | 120mA Red, 150mA Green, 150mA Blue |
| Wavelength - Dominant | 624 nm, 525 nm, 450 nm | Lumens/Watt @ Current - Test | 33 lm/W Red, 38 lm/W Green, 9 lm/W Blue |
| Flux @ 25degC, Current - Test | 10 lm Red, 20 lm Green, 5 lm Blue | ||
Mechanical
| Color | Red, Green, Blue (RGB) | Packaging | Cut Tape (CT) |
| Lens Color | Water Clear | Mounting Type | Surface Mount |

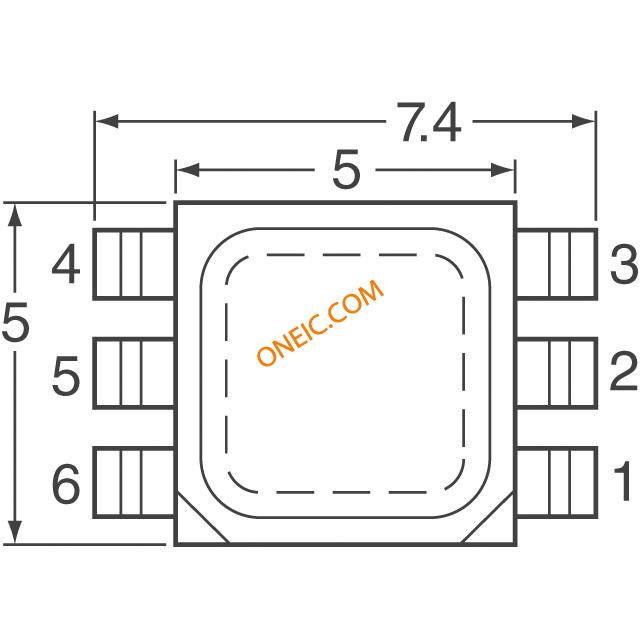

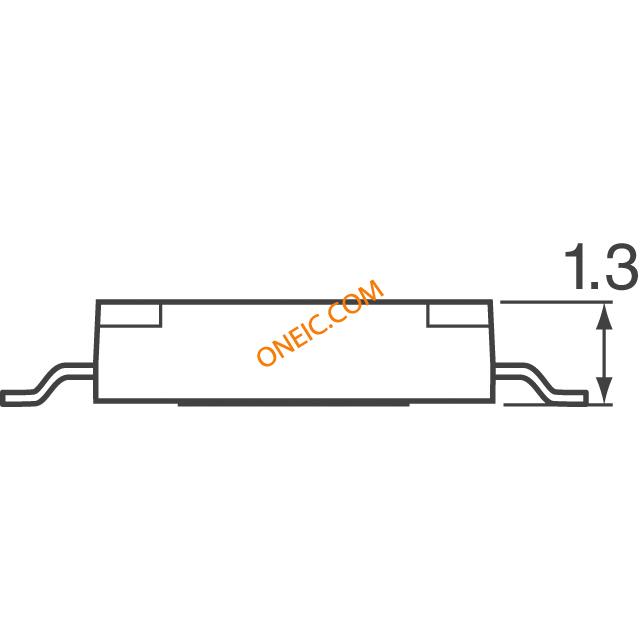

| Mounting Style | SMD/SMT | Package / Case | 5.00mm L x 5.00mm W x 1.30mm H |
| Illumination Color | Orange, Green, Blue | ||
Environmental
| Mechanical Life | End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer. | Operating Temperature | + 85 C |
| Thermal Resistance of Package | 50°C/W, 35°C/W, 30°C/W | Luminous Flux @ Current/Temperature | 9600 mcd, 6500 mcd, 1300 mcd |
