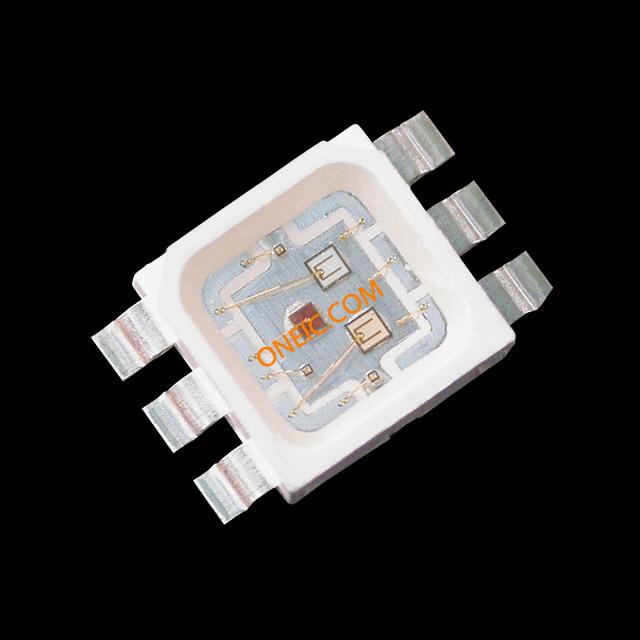

AAAF5051-02
| Manufacturer | |
| Description | High Power LEDs - Multi-Color RGB Full Color 5.0X5.0mm LED 5.0X5.0MM RGB CLR SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 754-1327-2 | Product Category | High Power LEDs - Multi-Color |
| Standard Package | 500 | Factory Pack Quantity | 500 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical

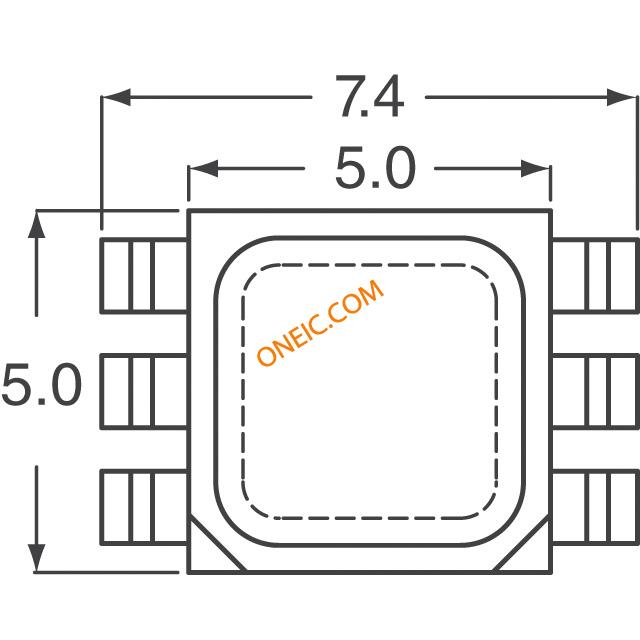

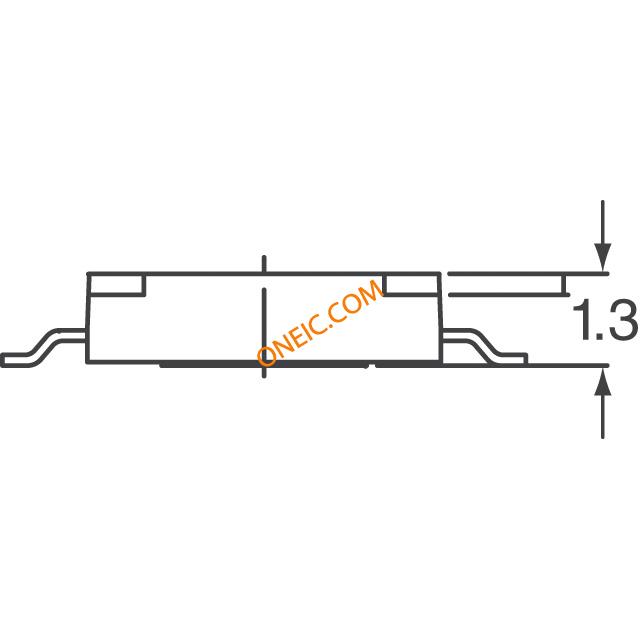

| Optic Size | 5 mm x 5 mm x 1.3 mm | Wavelength | 624nm, 525nm, 457nm |
| Luminous Flux | 9000 mlm, 17000 mlm, 6300 mlm | Power - Rated | 0.5 W |
| Viewing Angle | 120 deg | Current - Output | 3 x 120mA |
| Voltage - Supply | 2.3V Red, 3.2V Green, 3.1V Blue | LED Forward Current | 120 mA |
| LED Forward Voltage | 2.3 V, 3.2 V, 3.1 V | Current Rating (Max) | 3 x 120mA |
| Wavelength - Dominant | 624 nm, 525 nm, 457 nm | Lumens/Watt @ Current - Test | 33 lm/W Red, 44 lm/W Green, 17 lm/W Blue |
| Flux @ 25degC, Current - Test | 9 lm Red, 17 lm Green, 6.3 lm Blue | ||
Mechanical
| Color | Red, Green, Blue (RGB) | Packaging | Reel |
| Lens Color | Water Clear | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 6-SMD, Gull Wing |
| Illumination Color | Orange, Green, Blue | ||
Environmental
| Mechanical Life | Obsolete | Operating Temperature | + 85 C |
| Thermal Resistance of Package | 270°C/W, 200°C/W, 220°C/W | Luminous Flux @ Current/Temperature | 4000 mcd, 4900 mcd, 1450 mcd |
