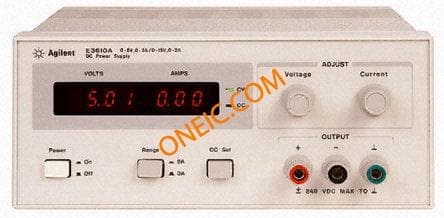

E3610A
| Manufacturer | |
| Description | RSCAL(6677325) DC powr supply,8/15V;3/2A UKAS(6677325) DC powr supply,8/15V;3/2A 24W 2 Output Digital Bench Power Supply, 0 to 15 V, 0 to 8 V, 0 to 2 A, 0 to 3 A PSU, BENCH, 30W, DCPS PowerSupply;Single-Output30WTypeofPowerSupply;0to8/0to15V Pwr sup.unit: laboratory; Channels:1; 0÷15V/2A,0÷8V/3A |
| Category |
Compliance
| RoHS | Not Applicable | SVHC | :Bis (2-ethylhexyl)phthalate (DEHP) (20-Jun-2013) |
| Tariff No | 85043180 | ||
Electrical
| Noise | ≤200µVrms | Output Type | :Fixed |
| Power - Max | 30W(Max.) | Power - Input | 230VAC ±10% 47-63Hz |
| Power - Rated | 24W | Power - Output | 30W |
| Voltage Rating | 0 → 15 V, 0 → 8 V | Load Regulation | :0.01% |
| Output Function | 0...15V/2A, 0...8V/3A | Current - Output | 0 → 2 A, 0 → 3 A |
| Voltage - Supply | 110 V ac, 230 V ac | Number of Outputs | 2 |
| Output Resolution | 10mA | Power Supply Type | :Linear |
| Current - Output 2 | :2A | Number of Channels | 1 |
| Voltage - On State | ≤0,01% + 2mV | Voltage - Input (Min) | 8/15VDC |
| Current - Output (Typ) | :2A | Voltage - Output (Max) | :15V |
| Voltage Regulation - Line | 0.01%+2mV | Voltage - Output (Min/Fixed) | :8V |
| Voltage - Output 2 (Adj Range) | :15V | ||
Mechanical
| Depth | :319mm | Width | :213mm |
| Height | :88.1mm | Length | :91mm |
| Weight | :3.8kg | Size / Dimension | 3.6in.Lx8.4in.Wx12.6in.H |
| Number of Positions | 2 | ||
Product Info
| Type | Digital | Warranty | :3 Years |
| Plug Type | :Euro, UK | Calibration | RSCAL |
| Manufacturer | E3600Series | Display Style | LED |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | 0°C | Maximum Temperature Limit | +55°C |
