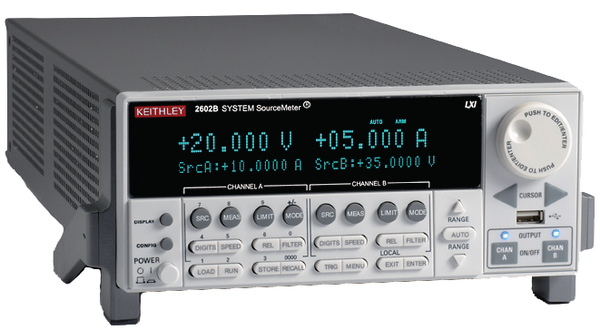

2602B
| Manufacturer | |
| Description | Sourcemeter 2602B, 3A DC, 10A pulse, 2Ch Source Measure Units - SMUs Digital Sourcemeter SOURCEMETER, DUAL, 40V, 10A SystemSourceMeter;2Channels;40V Source Measurement Unit 2x40 W, 2602B, Keithley Keithley , 2600 系列 数字源表, 2 通道, 500 nΩ → 40 TΩ, ±100 nA → ±10 A, ±100 mV → ±40 V, 80 W |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Source Measure Units | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85044090 |
Electrical
| Ranging | Auto | Accuracy | 0.2 % |
| Frequency | 50 Hz to 60 Hz | Resistance | :500nohm to 40Tohm |
| Output Power | :80W | Power - Rated | 40.4W |
| Voltage Range | 100 mV to 40 V | Power - Output | 80W |
| Voltage Rating | 250 V ac | Line Regulation | 0.01 % |
| Load Regulation | ±0.01 % | Current - Output | 10A |
| Capacitance Range | 10 nF to 50 uF | Number of Outputs | 2 |
| Voltage - Input (Min) | 40V | Current - Output Source/Sink | :± 100nA to ± 10A |
| Resistance - Initial (Ri) (Min) | 10 kOhms | ||
Mechanical
| Width | 460mm | Height | 89mm |
| Length | 213mm | Weight | 12.500 lbs |
| Mounting Type | Rack Mount | Size / Dimension | 213 x 460 x 89mm |
Product Info
| Type | Bench | Function | :Current/Resistance/Voltage Measure, Current/Voltage Source |
| Manufacturer | 2600BSeries | ||
Environmental
| Operating Temperature | +50 °C | ||
