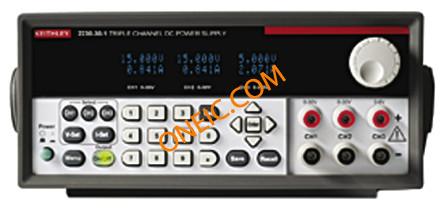

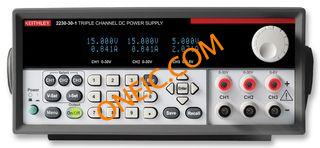

2230-30-1
| Manufacturer | |
| Description | Programmable DC power supply 30V, 1.5A UKAS(7683435) Programmable DC power supp RSCAL(7683435) Programmable DC power sup Bench Top Power Supplies Programmable3Channel DC Power Supply POWER SUPPLY, TRIPLE, 0V-6V / 0V-30V PROGRAMMABLETRIPLECHANNELDCPOWERSUPPLY Laboratory Power Supply 3 Ch. 0...30 VDC 1.5 A / 0...30 VDC 1.5 A / 0...6 VDC 5 A, Programmable, 2230-30-1, Keithley Keithley 台式电源, 3 输出, 0 → 30V, 0 → 1.5A, 120W |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Compliant | Tariff No | 90303200 |
Electrical
| Output Type | :Fixed | Display Type | VFD |
| Power - Rated | 120W | Power - Output | 120W |
| Voltage Rating | 220 V ac | Line Regulation | 0.01 % |
| Load Regulation | 0.01 % | Current - Output | 1.5A |
| Number of Outputs | 3 | Current - Output 2 | :1.5A |
| Current - Output 3 | :5A | Voltage - Output 3 | 0 V to 6 V |
| Voltage - Input (Min) | 0 V to 30 V | Current - Output (Typ) | :0A |
| Voltage - Output (Max) | 30 V | Current - Output / Channel | 1.5 A |
| Voltage - Output (Min/Fixed) | 0 V | Voltage - Output 2 (Adj Range) | :30V |
Mechanical
| Width | 217.2mm | Height | 361.6mm |
| Length | 90.7mm | Weight | 9 lbs |
| Mounting Type | Rack Mount | Size / Dimension | 90.7 x 217.2 x 361.6mm |
Product Info
| Type | DC Power Supplies (Programmable) | Series | 2230 |
| Plug Type | :- | Manufacturer | 2200Series |
Environmental
| Operating Temperature | +40 °C | ||
Documents & Media
PDF Document
