点击放大查看
XHP-9
| Manufacturer | |
| Description | CONN HOUSING 2.5MM XH 9POS Crimp housing,XH,2.5mm pitch,9w Conn Housing PL 9 POS 2.5mm Crimp ST Cable Mount Bag JST XHP 系列 1 行 2.5mm 节距 9 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Current Rating (Max) | 3 A | Voltage - Supply (Min) | 250VDC/250VAC |
Mechanical
| Color | Natural | Depth | 7.75mm |
| Pitch | 0.098" (2.50mm) | Width | 5.7mm |
| Height | 5.7 mm | Length | 24.8mm |
| Packaging | Bulk | Wire Gauge | 22-30 |
| Orientation | 直 | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Number of Rows | 1 |
| Housing Material | Nylon | Length - Overall | 24.8 mm |
| Number of Contacts | 9 | Contact Termination | Crimp |
| Number of Positions | 9 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | Male | Series | XH |
| DELETED | Compliant | For Use With/Related Products | Removable crimp connector |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts
SXH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 22-28AWG SXH-001T-P0.6 Contact; female; 0.05÷0.22mm2; 22÷28AWG; XH; crimped JST XH 系列 母 压接接线端子, 压接, 镀锡触点
$0.0314
Details
SXH-002T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 26-30AWG
$0.0510
Details
(SN).JPG&w=3840&q=75)

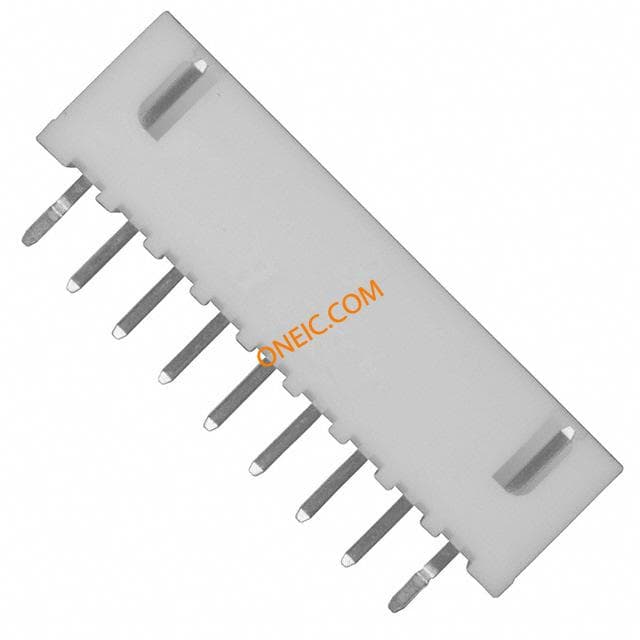

B9B-XH-A(LF)(SN)
JST Sales America Inc
CONN HEADER XH TOP 9POS 2.5MM JST XH Series 2.5mm Pitch 9 Way 1 Row Straight PCB Header, Solder Termination, 3A JST XH 系列 2.5mm节距 9路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
$0.5324
Details
(SN).JPG&w=3840&q=75)

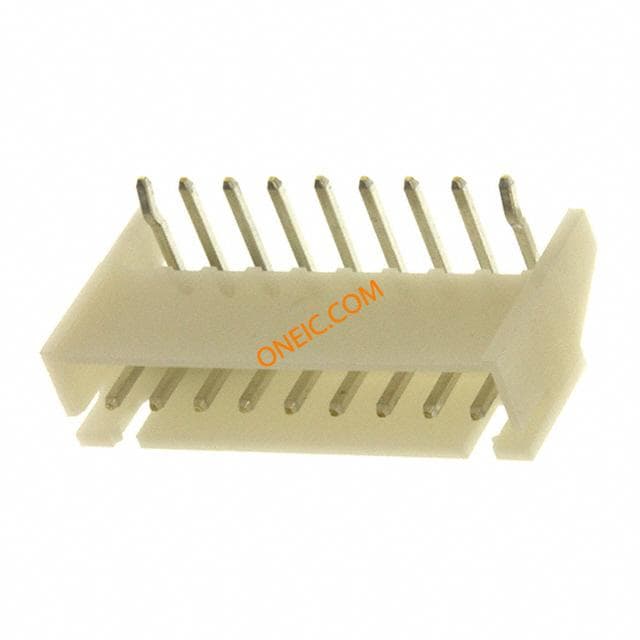

S9B-XH-A(LF)(SN)
