XHP-8
| Manufacturer | |
| Description | CONN HOUSING XH 8POS 2.5MM Crimp housing,XH,2.5mm pitch,8w Conn Housing PL 8 POS 2.5mm Crimp ST Cable Mount Bag Crimp housing 2.5 mm Poles 8 XH, XHP-8, JST JST XHP 系列 1 行 2.5mm 节距 8 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 1000 | Voltage Rating | 250 |
| Number of Poles | 8 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhm |
| Voltage - Supply (Min) | 250VDC/250VAC | ||
Mechanical
| Color | Natural | Depth | 7.75mm |
| Pitch | 0.098" (2.50mm) | Width | 5.7mm |
| Height | 5.7 mm | Length | 22.3mm |
| Packaging | Bulk | Body Color | 22.3 |
| Wire Gauge | 22-30 | Orientation | 直 |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Number of Rows | 1 | Contact Material | Tin-plated phosphor bronze |
| Housing Material | Nylon | Length - Overall | 22.3 mm |
| Number of Contacts | 8 | Contact Termination | Crimp |
| Number of Positions | 8 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | Male | Series | XH |
| DELETED | Compliant | Amplifier Type | 17.5 |
| Connection Method | Wire-Board | For Use With/Related Products | Removable crimp connector |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts
SXH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 22-28AWG SXH-001T-P0.6 Contact; female; 0.05÷0.22mm2; 22÷28AWG; XH; crimped JST XH 系列 母 压接接线端子, 压接, 镀锡触点
$0.0619
Details
SXH-002T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 26-30AWG
$0.0510
Details
(SN)(P).JPG&w=3840&q=75)

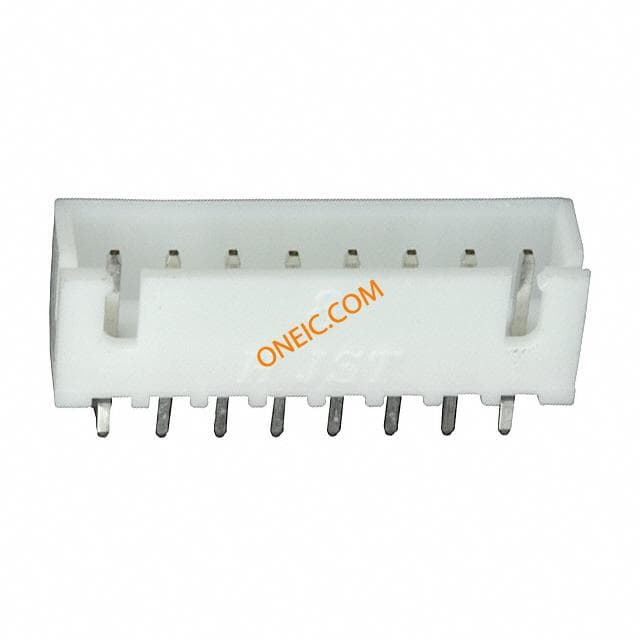

B8B-XH-A (LF)(SN)(P);
JST Sales America Inc
CONN HEADER XH TOP 8POS 2.5MM
$1.0095
Details
(SN).jpg&w=3840&q=75)
S8B-XH-A(LF)(SN)
JST Sales America Inc
CONN HEADER XH SIDE 8POS 2.5MM JST XH Series 2.5mm Pitch 8 Way 1 Row Right Angle PCB Header, Solder Termination, 3A JST XH 系列 2.5mm节距 8路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
$0.5970
Details
(SN).JPG&w=3840&q=75)

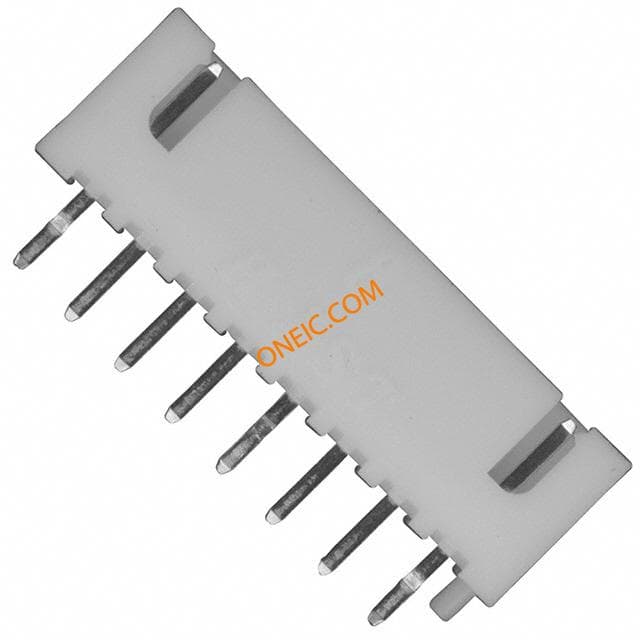

B8B-XH-AM(LF)(SN)(P)
