XHP-7
| Manufacturer | |
| Description | CONN HOUSING 2.5MM XH 7POS Crimp housing,XH,2.5mm pitch,7w XHP-7 Crimp housing 2.5 mm Poles 7 XH, XHP-7, JST JST XHP 系列 1 行 2.5mm 节距 7 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 1000 | Voltage Rating | 250 |
| Number of Poles | 7 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhm |
Mechanical
| Color | Natural | Depth | 7.75mm |
| Pitch | 0.098" (2.50mm) | Width | 5.7mm |
| Length | 19.8mm | Packaging | Bulk |
| Body Color | 19.8 | Orientation | 直 |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Number of Rows | 1 |
| Contact Material | Tin-plated phosphor bronze | Housing Material | Nylon |
| Number of Contacts | 7 | Contact Termination | Crimp |
| Number of Positions | 7 | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | XH | Amplifier Type | 15 |
| Connection Method | Wire-Board | For Use With/Related Products | Removable crimp connector |
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
PDF Document
Similar Parts
SXH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 22-28AWG SXH-001T-P0.6 Contact; female; 0.05÷0.22mm2; 22÷28AWG; XH; crimped JST XH 系列 母 压接接线端子, 压接, 镀锡触点
$0.0619
Details
SXH-002T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 26-30AWG
$0.0510
Details
(SN)(P)%3B.JPG&w=3840&q=75)
B7B-XH-A (LF)(SN)(P)
JST Sales America Inc
CONN HEADER XH TOP 7POS 2.5MM
$0.9119
Details
(SN).JPG&w=3840&q=75)

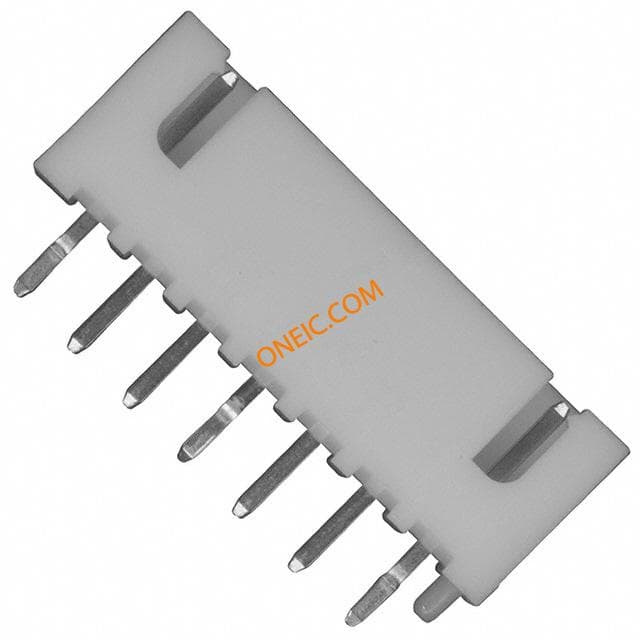

B7B-XH-AM(LF)(SN)(P)
JST Sales America Inc
CONN HEADER XH TOP 7POS 2.5MM
$0.9516
Details
(SN).JPG&w=3840&q=75)

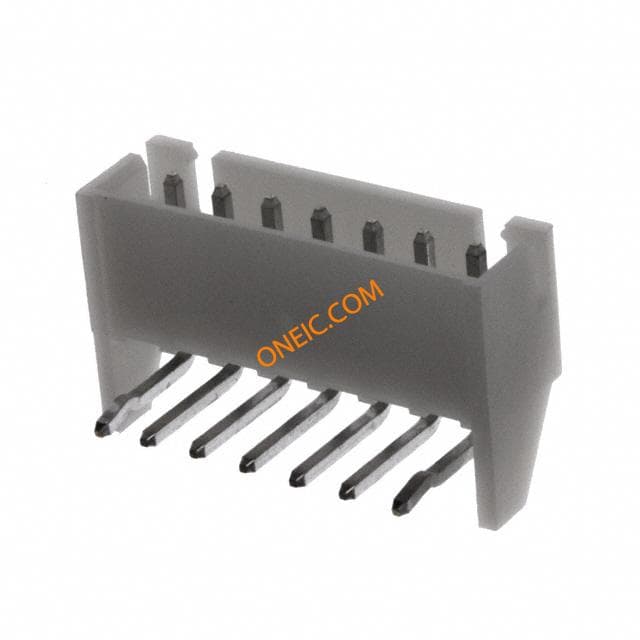

S7B-XH-A(LF)(SN)
