XHP-3
| Manufacturer | |
| Description | CONN HOUSING 2.5MM XH 3POS Crimp housing,XH,2.5mm pitch,3w Conn Housing PL 3 POS 2.5mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:3; w/o terminals; 2.5mm; for cable Crimp housing 2.5 mm Poles 3 XH, XHP-3, JST JST XHP 系列 1 行 2.5mm 节距 3 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage - Test | 1000 | Voltage Rating | 250V |
| Number of Poles | 3 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhm |
| Voltage - Supply (Min) | 250VDC/250VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 7.75mm |
| Pitch | 0.098" (2.50mm) | Width | 5.7mm |
| Height | 5.7 mm | Length | 9.8mm |
| Weight | 0.2 g | Packaging | Bulk |
| Body Color | 9.8 | Wire Gauge | 22-30 |
| Orientation | 直 | Contact Type | Female Socket |
| Pitch - Post | 2.5mm | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Mounting Style | for cable | Number of Rows | 1 |
| Contact Material | Tin-plated phosphor bronze | Housing Material | Nylon |
| Length - Overall | 9.8 mm | Package Quantity | 250 |
| Connector - Cable | plug | Number of Contacts | 3 |
| Contact Termination | Crimp | Number of Positions | 3 |
| 1st Connector Mounting Feature | 1x3 | ||
Product Info
| Spg | 250 | Note | Contacts Not Provided |
| Type | Housing | Gender | Male |
| Series | XH | Adapter Series | XH |
| Amplifier Type | 5 | Number of Units | 1 |
| Connection Method | Wire-Board | For Use With/Related Products | Removable crimp connector |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
Similar Parts
VF-D250-D1224A-CF
CUI Inc
POWER SUPPLY 250W 12V/24V
VF-D250-D1224A
CUI Inc
POWER SUPPLY 250W 12/24V DUAL

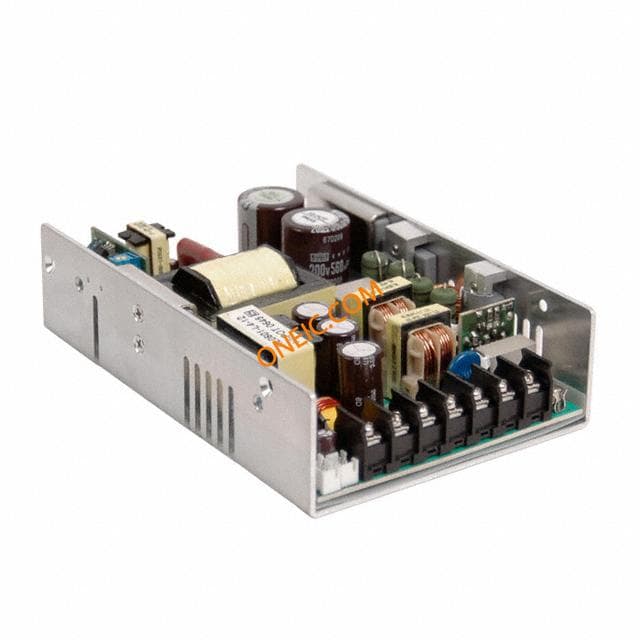

VF-S320-54A-1
CUI Inc
PWR SUPPLY 320W 54V SNGL OUTPUT

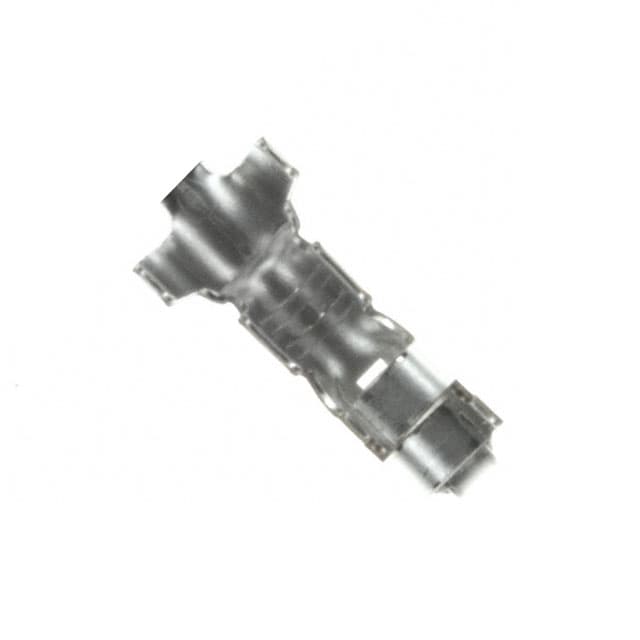

SXH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 22-28AWG SXH-001T-P0.6 Contact; female; 0.05÷0.22mm2; 22÷28AWG; XH; crimped JST XH 系列 母 压接接线端子, 压接, 镀锡触点

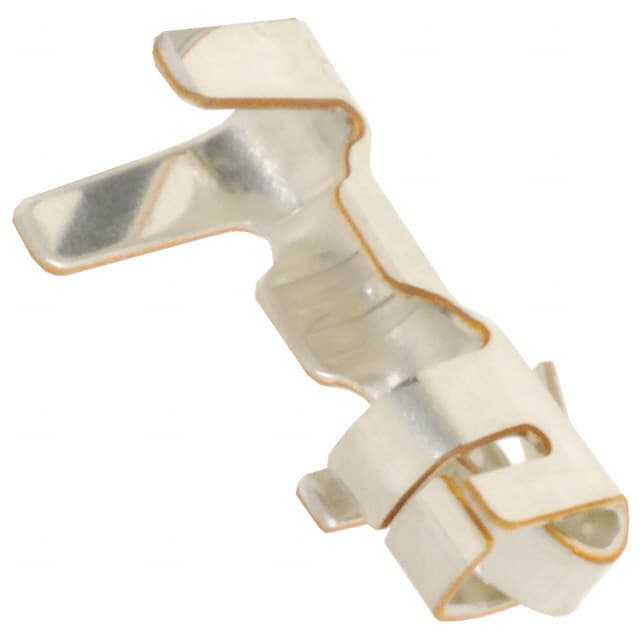

SXH-002T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 26-30AWG
(SN)(P).JPG&w=3840&q=75)

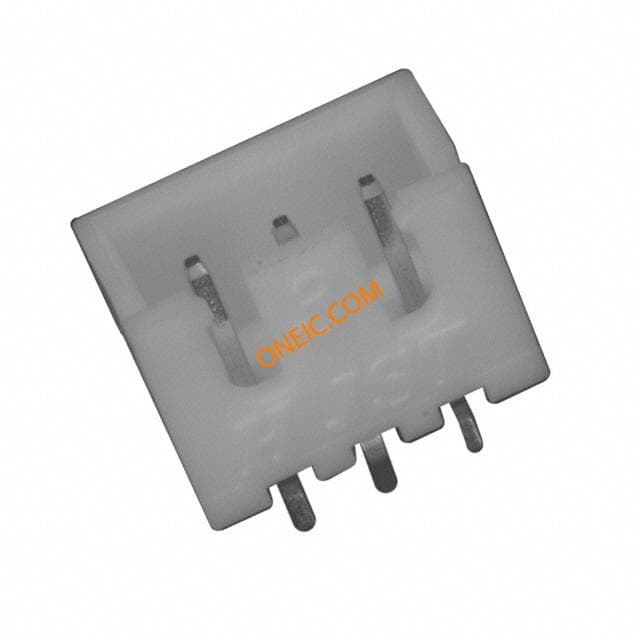

B3B-XH-AM(LF)(SN)(P)
JST Sales America Inc
CONN HEADER XH TOP 3POS 2.5MM
(SN).jpg&w=3840&q=75)

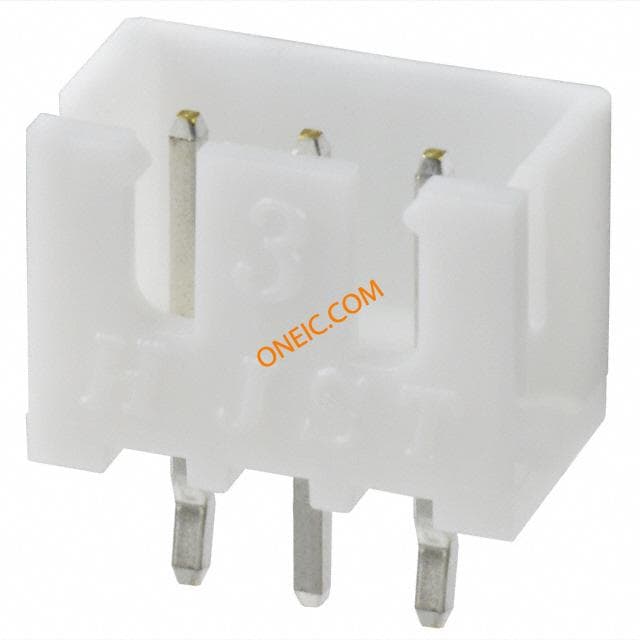

B3B-XH-A (LF)(SN)(P)
JST Sales America Inc
CONN HEADER XH TOP 3POS 2.5MM
(SN).JPG&w=3840&q=75)

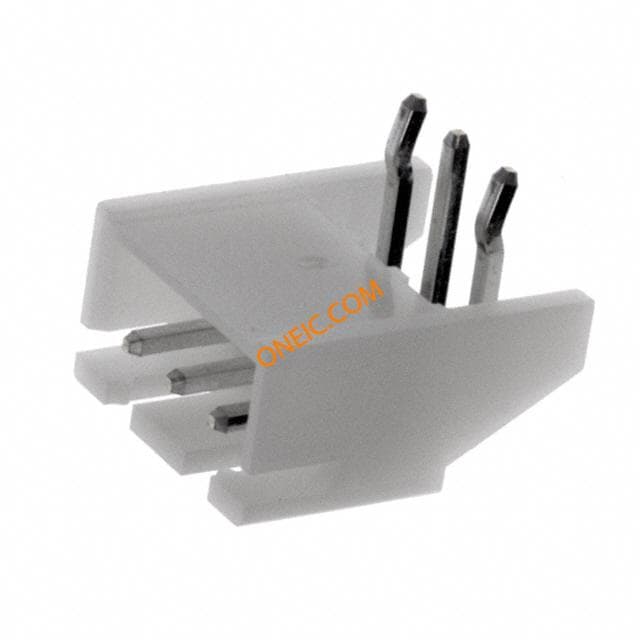

S3B-XH-A(LF)(SN)
