XHP-12
| Manufacturer | |
| Description | CONN HOUSING 2.5MM XH 12POS Conn Housing PL 12 POS 2.5mm Crimp ST Bag Crimp housing 2.5 mm Poles 12 XH, XHP-12, JST JST XHP 系列 1 行 2.5mm 节距 12 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 1000 | Voltage Rating | 250 |
| Number of Poles | 12 | Contact Resistance | 10 mOhm |
| Current Rating (Max) | 3 A | Insulation Resistance | 1000 MOhm |
| Voltage - Supply (Min) | 250VDC/250VAC | Connector - Voltage Input | Crimp |
Mechanical
| Color | Natural | Depth | 7.75 mm |
| Pitch | 0.098" (2.50mm) | Width | 5.7mm |
| Height | 5.7 mm | Length | 32.3mm |
| Packaging | Bulk | Body Color | 32.3 |
| Wire Gauge | 22-30 | Orientation | 直 |
| Contact Form | Female Socket | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Number of Rows | 1 |
| Contact Material | Tin-plated phosphor bronze | Housing Material | Nylon 6 |
| Length - Overall | 32.3 mm | Number of Contacts | 1 |
| Contact Termination | Crimp | Number of Positions | 12 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | XH |
| Amplifier Type | 27.5 | Connection Method | Wire-Board |
| Output Configuration | Free Hanging (In-Line) | For Use With/Related Products | XH 系列可断开压接型连接器 |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts
SXH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 22-28AWG SXH-001T-P0.6 Contact; female; 0.05÷0.22mm2; 22÷28AWG; XH; crimped JST XH 系列 母 压接接线端子, 压接, 镀锡触点
$0.0619
Details
SXH-002T-P0.6
JST Sales America Inc
CONN TERM CRIMP XH 26-30AWG
$0.0510
Details
(SN).JPG&w=3840&q=75)

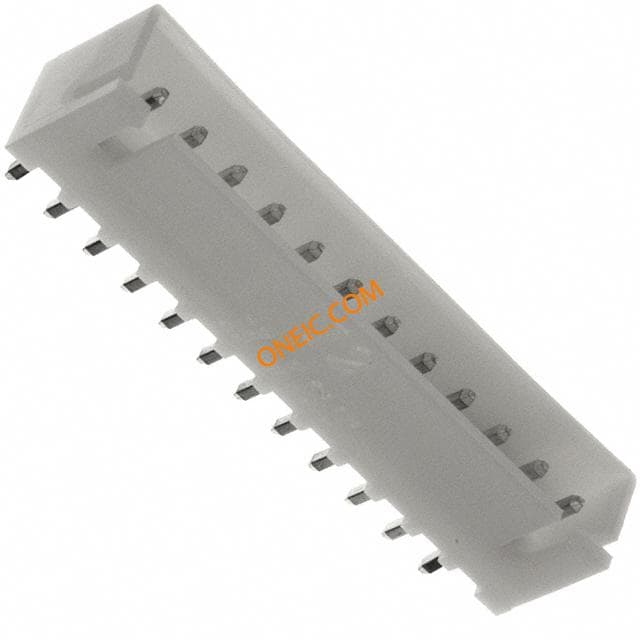

B12B-XH-A(LF)(SN)
JST Sales America Inc
CONN HEADER XH TOP 12POS 2.5MM B12B-XH-A(LF)(SN) JST XH 系列 2.5mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
$0.7772
Details
(SN).JPG&w=3840&q=75)

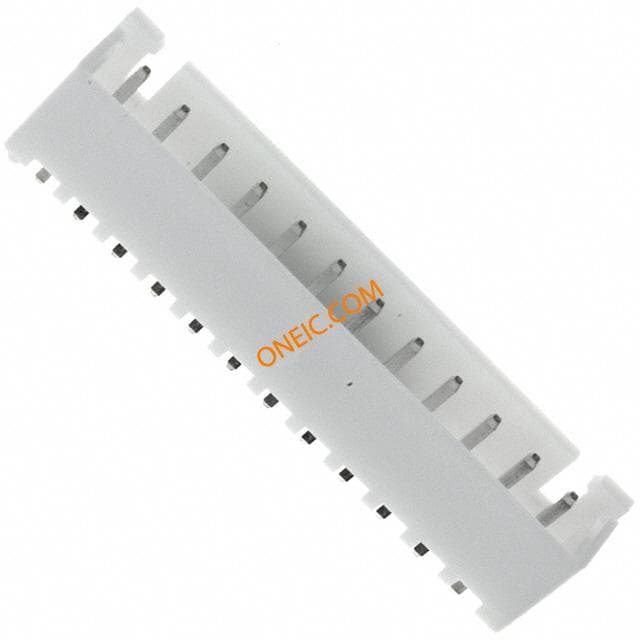

B12B-XH-AM(LF)(SN)
JST Sales America Inc
CONN HEADER XH TOP 12POS 2.5MM
$0.8276
Details
(SN).JPG&w=3840&q=75)

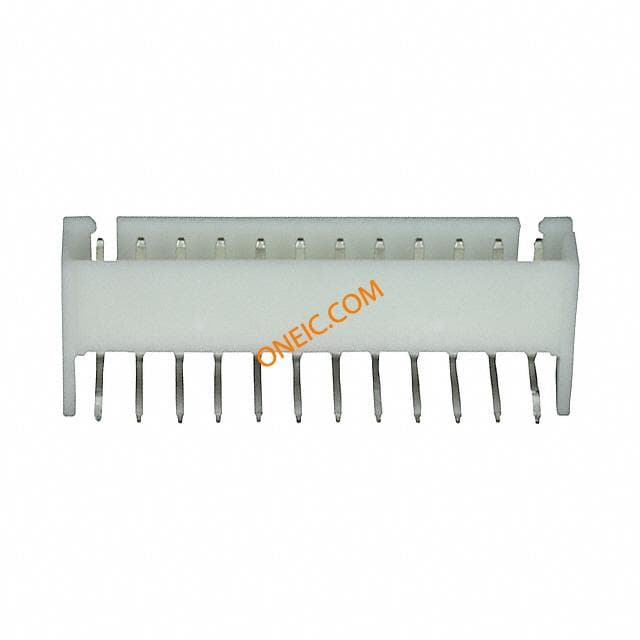

S12B-XH-A(LF)(SN)
