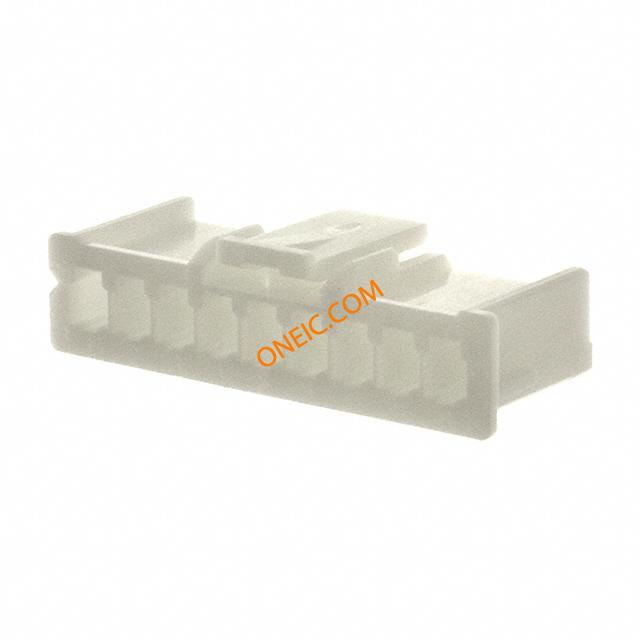

XAP-09V-1
| Manufacturer | |
| Description | CONN XA HOUSING 9 POS 2.5MM PCB plug housing,XA,2.5mm pitch,9way |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | ||
Mechanical
| Color | Natural | Depth | 9.5mm |
| Pitch | 0.098" (2.50mm) | Width | 6.9mm |
| Length | 24.8mm | Packaging | Bulk |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Number of Rows | 1 | Housing Material | Nylon |
| Number of Contacts | 9 | Contact Termination | Crimp |
| Number of Positions | 9 | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | XA | For Use With/Related Products | Removable crimp connector |
Documents & Media
PDF Document
PDF Document
Similar Parts
SXA-001T-P0.6
JST Sales America Inc
CONN CONTACT XA 28-22 AWG JST XA 系列 母 压接接线端子, 压接, 镀锡触点
$0.0317
Details
SXA-01T-P0.6
JST Sales America Inc
CONN CONTACT XA 24-20AWG TIN SXA-01T-P0.6 Crimp contact Female 24...20 AWG, SXA-01T-P0.6, JST JST XA 系列 母 压接触点, 压接, 镀锡触点
$0.0884
Details
.JPG&w=3840&q=75)
SXA-001T-P0.6L
JST Sales America Inc
CONN CONTACT XA 26-22AWG TIN
$0.0522
Details
(SN).JPG&w=3840&q=75)

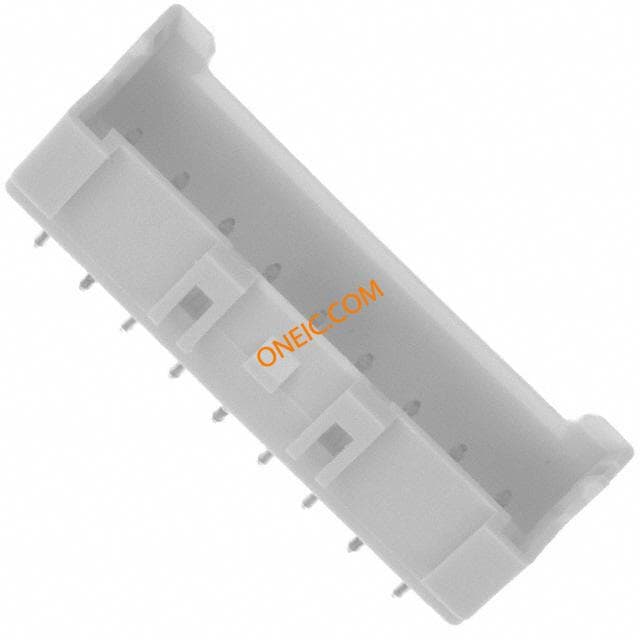

B09B-XASK-1(LF)(SN)
