SZH-002T-P0.5
| Manufacturer | |
| Description | CONN TERM CRIMP ZH 26-28AWG Connector,Multipole,PCB use,SZH-002T-P0 Contact SKT Crimp ST Cable Mount Embossed T/R Contact; female; 0.08÷0.13mm2; ZH; crimped; tape; 1.5mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 455-1130-1 | Standard Package | 13,000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Contact Resistance | 30mΩ | Current Rating (Max) | 1 A |
| Voltage - Supply (Min) | 50VDC/50VAC | ||
Mechanical
| Depth | 1.1 mm | Pitch | Not Required mm |
| Weight | 0.18 g | Packaging | Tape & Reel (TR) |
| Wire Gauge | 26-28 AWG | Termination | Crimp |
| Pitch - Post | 1.5mm | Housing Color | Not Required |
| Mounting Type | Straight | Pin or Socket | Socket |
| Connector Type | female | Contact Finish | Tin |
| Mounting Style | Cable | Package / Case | tape |
| Contact Material | Phosphor Bronze | Housing Material | Not Required |
| Length - Overall | 4 mm | Package Quantity | 13000 |
| Connector - Cable | contact | Number of Contacts | Not Required |
| Contact Termination | Crimp | Wire Gauge or Range - mm2 | 0.08...0.13mm2 |
Product Info
| Spg | 13000 | Type | Contact |
| Gender | Female | Adapter Series | ZH |
| Number of Units | 1 | ||
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
PDF Document
Similar Parts
WC-491
JST Sales America Inc
TOOL HAND CRIMP ZH 26-28AWG ZH crimp tool Parallel Action Ratchet Release Hand Crimping Tool Crimping tool for AWG 28...26, WC-491, JST JST Crimp Contact 压接工具 , 适用于28 → 26 AWG 线规格
$1.1832
Details

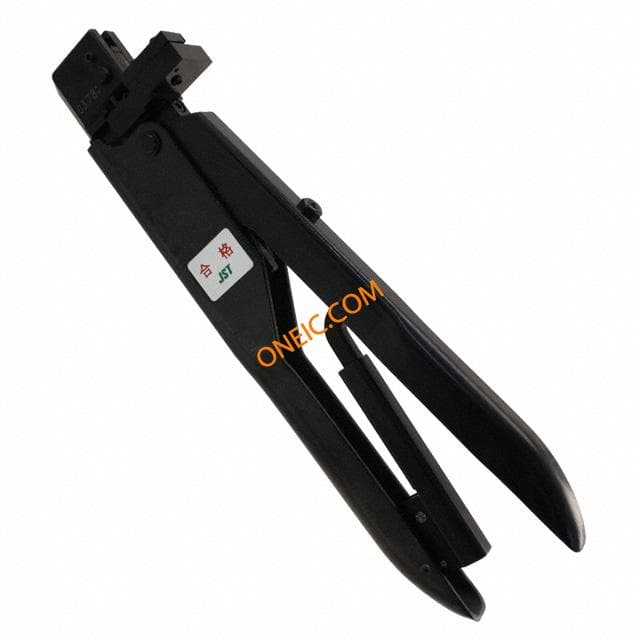

YRS-491
