PHR-5

Manufacturer	JST Mfg. Co., Ltd.
Description	CONN HOUSING PH 5POS 2MM WHITE Housing,PH,2.0mm pitch,5way Conn Housing RCP 5 POS 2mm Crimp ST Cable Mount Box Crimp housing 2 mm Poles 5 PH, PHR-5, JST JST PHR 系列 1 行 2mm 节距 5 路直母电缆安装 PCB 连接器外壳
Category	Resistors and PotentiometersThrough Hole ResistorsSpace-Saving Resistors

对参数有疑问？问 AI 助手

Business

Standard Package

1,000

Compliance

RoHS

Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage - Test	800	Voltage Rating	100
Number of Poles	5	Contact Resistance	10 mOhm
Current Rating (Max)	2 A	Insulation Resistance	1000 MOhm
Voltage - Supply (Min)	100VDC/100VAC

Mechanical

Color	Natural	Depth	6.85mm
Pitch	0.079" (2.00mm)	Width	4.5mm
Height	4.5 mm	Length	11.8mm
Packaging	Bulk	Body Color	9
Wire Gauge	24-30	Orientation	直
Contact Type	Female Socket	Housing Color	White
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Fastening Type	Detent Lock	Number of Rows	1
Contact Material	Tin-plated phosphor bronze	Housing Material	Nylon
Length - Overall	11.8 mm	Number of Contacts	5
Contact Termination	Crimp	Number of Positions	5

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	Female	Series	PH
Amplifier Type	6	Connection Method	Wire-Board
For Use With/Related Products	Removable crimp connector

Environmental

Operating Temperature

-25C to 85C

Documents & Media

PDF Document

PH Series

Similar Parts

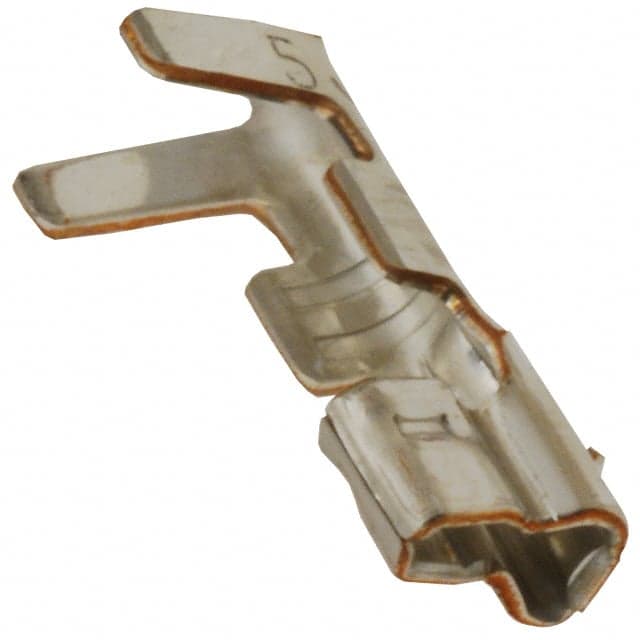

SPH-002T-P0.5L

JST Sales America Inc

CONN TERMINAL 28-24AWG TIN SPH-002T-P0.5L

$0.0303

Details

SPH-004T-P0.5S

JST Sales America Inc

CONN TERM CRIMP PH 28-32AWG TIN

$0.0346

Details

SPH-002T-P0.5S

JST Sales America Inc

CONN TERM CRIMP PH 24-30AWG Contact SKT Crimp ST Cable Mount Embossed T/R Crimp contact Female 30...24 AWG, SPH-002T-P0.5S, JST JST PH 系列母压接接线端子, 压接, 镀锡触点

$0.0714

Details

SPH-002GW-P0.5L

JST Sales America Inc

CONN TERM CRIMP PH GOLD 24-28AWG

$0.4556

Details

B5B-PH-K-S(LF)(SN)

JST Sales America Inc

CONN HEADER PH TOP 5POS 2MM JST PH Series 2mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 2A JST PH 系列 5路 2mm节距 (1排) 直 PCB 针座 , 焊接端接, 2A, 通孔

$0.2169

Details

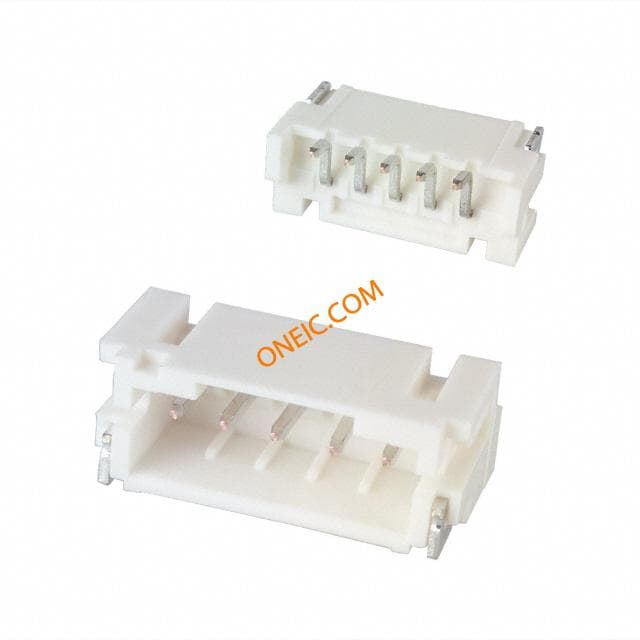

S5B-PH-SM4-TB(LF)(SN)

JST Sales America Inc

CONN HEADER PH SIDE 5POS 2MM SMD

$1.2859

Details

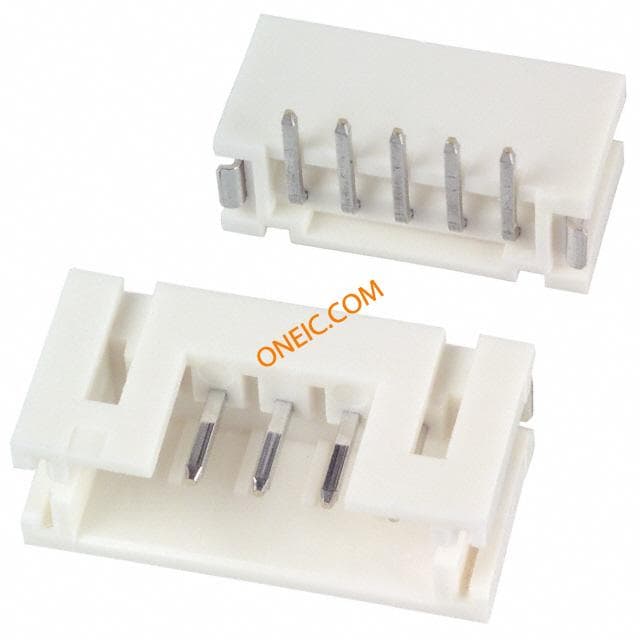

B5B-PH-SM4-TB(LF)(SN)

JST Sales America Inc

CONN HEADER PH TOP 5POS 2MM SMD JST PH Series 2mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 2A JST PH 系列 2mm节距 5路 (1排) 直 PCB 针座, 焊接端接, 2A , 表面安装

$1.1084

Details

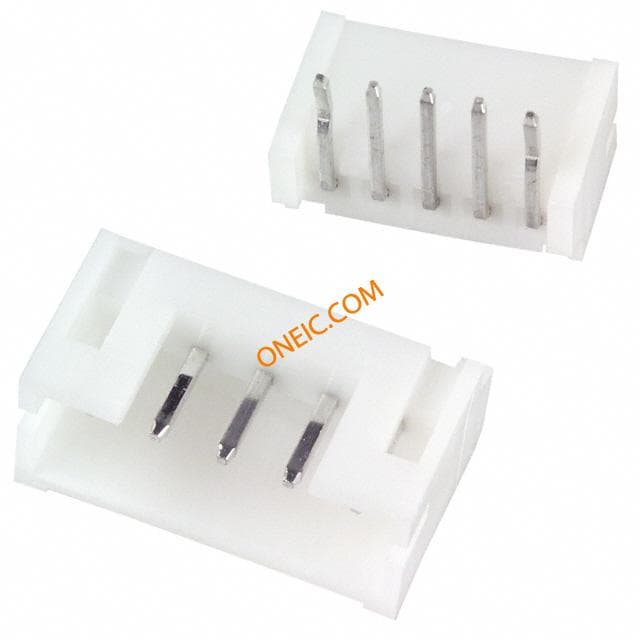

S5B-PH-K-S(LF)(SN)
