点击放大查看
PHDR-10VS
| Manufacturer | |
| Description | CONN HOUSING PHD 10POS 2MM DUAL Conn Housing RCP 10 POS 2mm Crimp ST Cable Mount Bag Crimp housing Pitch2 mm Poles 10 Double row / Free hanging/cable mount PHD, PHDR-10VS, JST |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage Rating | 250 | Number of Poles | 10 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 3 A |
| Insulation Resistance | 1000 MOhm | Voltage - Supply (Min) | 250VDC/250VAC |
| Connector - Voltage Input | Crimp | ||
Mechanical
| Color | Natural | Depth | 7.3 mm |
| Pitch | 0.079" (2.00mm) | Height | 5 mm |
| Packaging | Bulk | Wire Gauge | 22-28 AWG |
| Row Spacing | 0.079" (2.00mm) | Contact Form | Female Socket |
| Contact Type | Female Socket | Lead Spacing | 0.079" (2.00mm) |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Number of Rows | 2 |
| Connector Style | Double row | Housing Material | Polyamide 66 |
| Length - Overall | 11.9 mm | Color - Connectors | white |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 10 | 1st Connector Gender | Female |
| Wire Gauge or Range - AWG | 28...22 AWG | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | RCP | Series | PHD |
| Connection Method | Wire-Board | Output Configuration | Free Hanging (In-Line) |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
Similar Parts

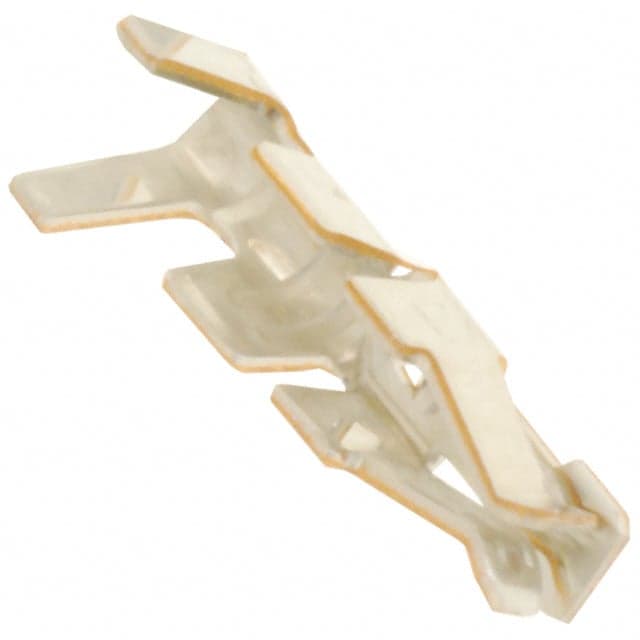

SPHD-001T-P0.5
JST Sales America Inc
CONN TERM PHD CRIMP 22-26AWG TIN PHD contact 26 to 22 awg Crimp contact Female 26...22 AWG, SPHD-001T-P0.5, JST JST PHD 系列 母 压接接线端子, 压接, 镀锡触点
SPHD-002T-P0.5
JST Sales America Inc
CONN TERM PHD CRIMP 24-28AWG TIN PHD contact 28 to 24 awg Contact; female; 0.08÷0.21mm2; 24÷28AWG; PHD; tinned; crimped; 3A JST PHD 系列 母 压接接线端子, 压接, 镀锡触点

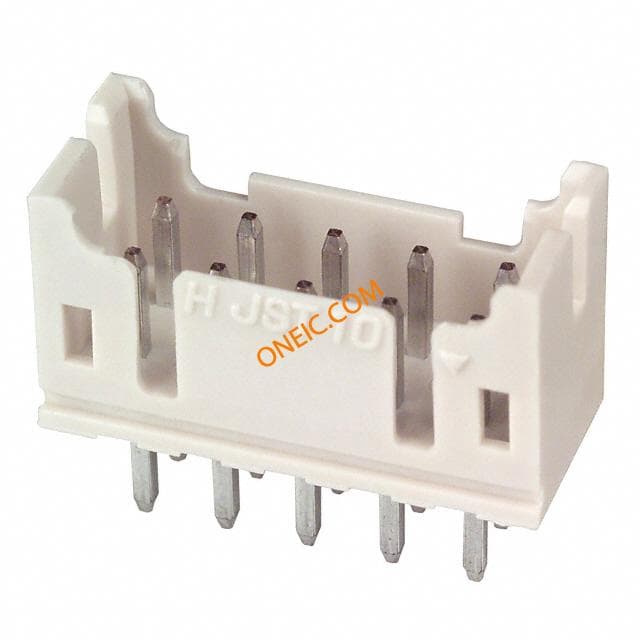

B10B-PHDSS(LF)(SN)(P)
