PAP-15V-S
| Manufacturer | |
| Description | CONN HOUSING PA 15POS 2MM WHITE connector,multipole PCB use,PAP-15V-S, |
| Category |
Business
| Other Names | 455-1499 | Standard Package | 1,000 |
Compliance
| RoHS | Compliant | ||
Mechanical
| Color | Natural | Depth | 8mm |
| Pitch | 0.079" (2.00mm) | Width | 5.8mm |
| Length | 32mm | Packaging | Bulk |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Number of Rows | 1 | Housing Material | Nylon |
| Number of Contacts | 15 | Contact Termination | Crimp |
| Number of Positions | 15 | ||
Product Info
| Note | Contacts Not Provided | Series | PA |
| For Use With/Related Products | Crimp Connector | ||
Documents & Media
Similar Parts
SPHD-001T-P0.5
JST Sales America Inc
CONN TERM PHD CRIMP 22-26AWG TIN PHD contact 26 to 22 awg Crimp contact Female 26...22 AWG, SPHD-001T-P0.5, JST JST PHD 系列 母 压接接线端子, 压接, 镀锡触点
SPHD-002T-P0.5
JST Sales America Inc
CONN TERM PHD CRIMP 24-28AWG TIN PHD contact 28 to 24 awg Contact; female; 0.08÷0.21mm2; 24÷28AWG; PHD; tinned; crimped; 3A JST PHD 系列 母 压接接线端子, 压接, 镀锡触点

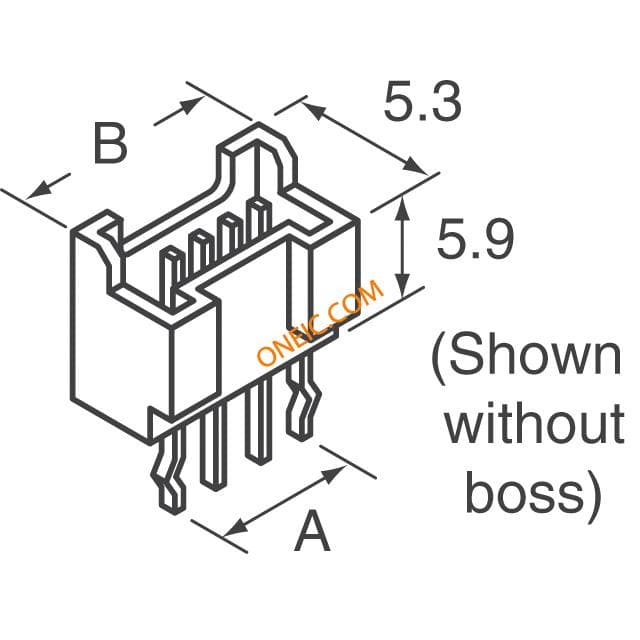

B15B-PASK(LF)(SN)
JST Sales America Inc
CONN HEADER PA 15POS TOP 2MM TIN

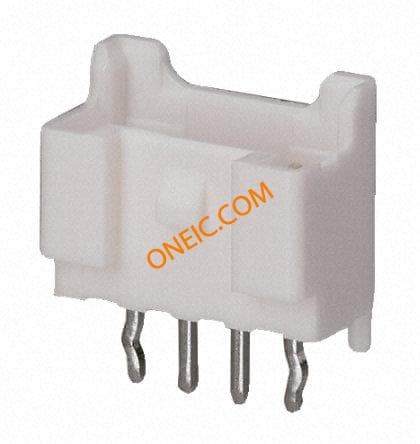

B15B-PASK-1(LF)(SN)
JST Sales America Inc
CONN HEADER PA 15POS TOP W/BOSS JST PA Series 2mm Pitch 15 Way 1 Row Straight PCB Header, Solder Termination, 3A

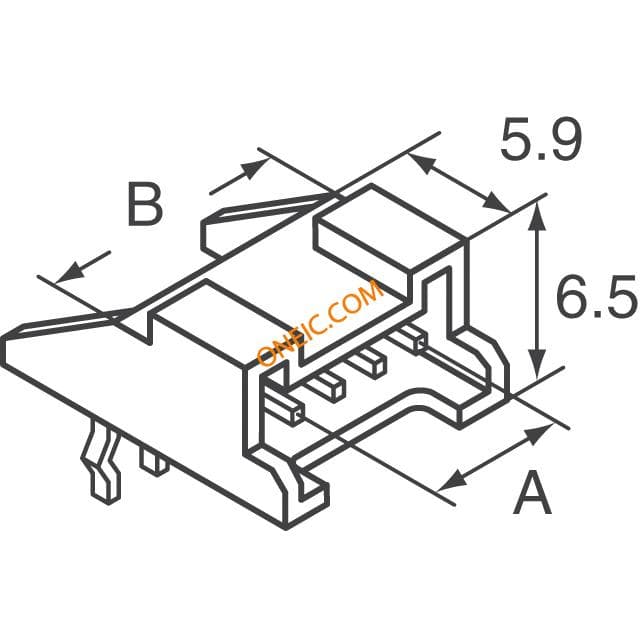

S15B-PASK-2(LF)(SN)
