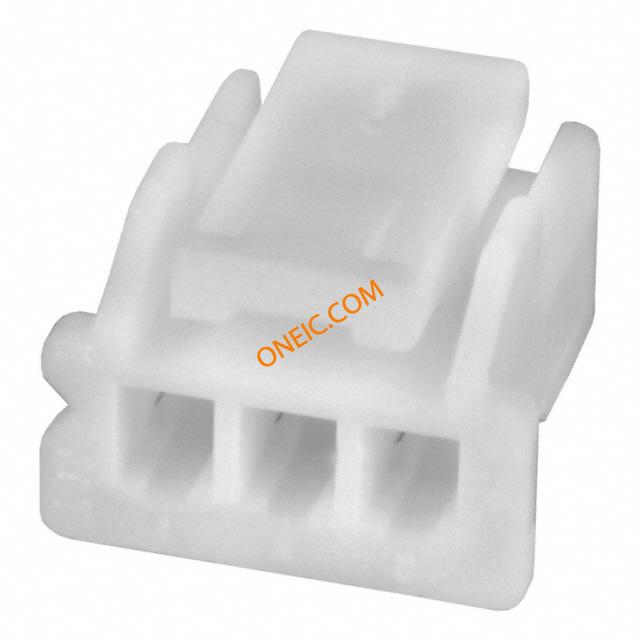

PAP-03V-S
| Manufacturer | |
| Description | CONN HOUSING PA 3POS 2MM WHITE 3 way socket housing PA 2.0 Crimp housing Pitch2 mm Poles 3 Single row / Free hanging/cable mount PA, PAP-03V-S, JST JST Polyamide 系列 2mm 节距 3 路 直 电缆安装 PCB 壳体 |
| Category |
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 250 | Number of Poles | 3 |
| Contact Resistance | 10 mOhm | Current Rating (Max) | 3 A |
| Insulation Resistance | 1000 MOhm | ||
Mechanical
| Color | Natural | Depth | 8mm |
| Pitch | 0.079" (2.00mm) | Width | 5.8mm |
| Length | 8mm | Packaging | Bulk |
| Orientation | 直 | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Number of Rows | 1 |
| Connector Style | Single row | Housing Material | Nylon |
| Color - Connectors | white | Number of Contacts | 3 |
| Contact Termination | Crimp | Number of Positions | 3 |
| 1st Connector Gender | Female | Wire Gauge or Range - AWG | 28...22 AWG |
Product Info
| Note | Contacts Not Provided | Type | Female housing |
| Series | PA | Connection Method | Wire-Board |
| For Use With/Related Products | Crimp Connector | ||
Environmental
| Operating Temperature | -25...+85 °C | ||
Documents & Media
Similar Parts

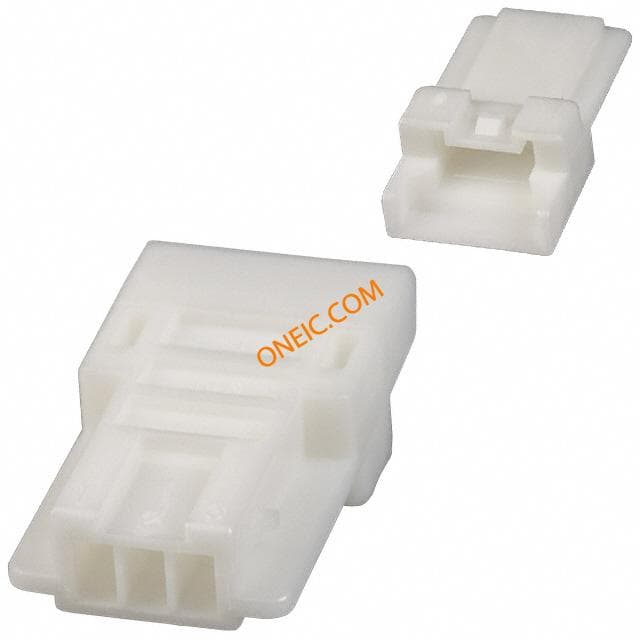

PALR-03VF
JST Sales America Inc
CONN HOUSING PAL 3POS 2MM WHITE Receptacle housing wire to wire 03 POS w/o panel locks

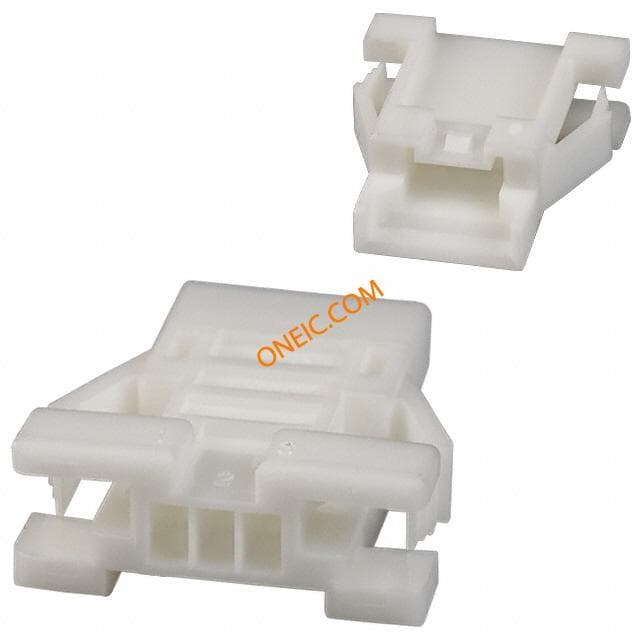

PALR-03V
JST Sales America Inc
CONN HOUSING PAL 3POS 2MM WHITE
SPHD-001T-P0.5
JST Sales America Inc
CONN TERM PHD CRIMP 22-26AWG TIN PHD contact 26 to 22 awg Crimp contact Female 26...22 AWG, SPHD-001T-P0.5, JST JST PHD 系列 母 压接接线端子, 压接, 镀锡触点
SPHD-002T-P0.5
JST Sales America Inc
CONN TERM PHD CRIMP 24-28AWG TIN PHD contact 28 to 24 awg Contact; female; 0.08÷0.21mm2; 24÷28AWG; PHD; tinned; crimped; 3A JST PHD 系列 母 压接接线端子, 压接, 镀锡触点
(sn).JPG&w=3840&q=75)

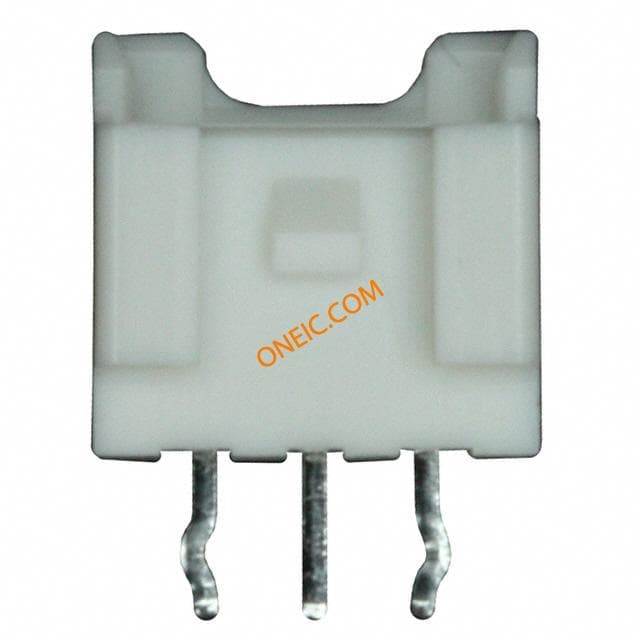

B03B-PASK(LF)(SN)
JST Sales America Inc
CONN HEADER PA 3POS TOP 2MM TIN
(SN)%2C-B03B-PASK(LF)(SN).jpg&w=3840&q=75)

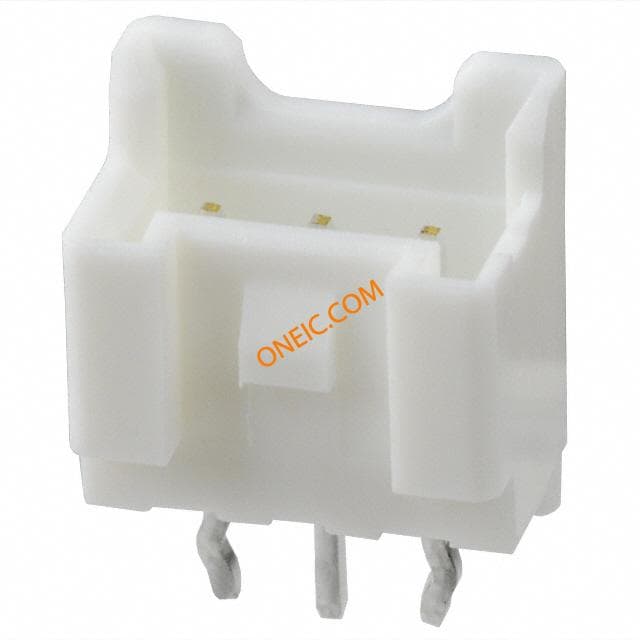

B03B-PASK-1(LF)(SN)
JST Sales America Inc
CONN HEADER PA 3POS TOP W/BOSS JST PA Series 2mm Pitch 3 Way 1 Row Straight PCB Header, Solder Termination, 3A JST Polyamide 系列 2mm节距 3路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
(SN).JPG&w=3840&q=75)

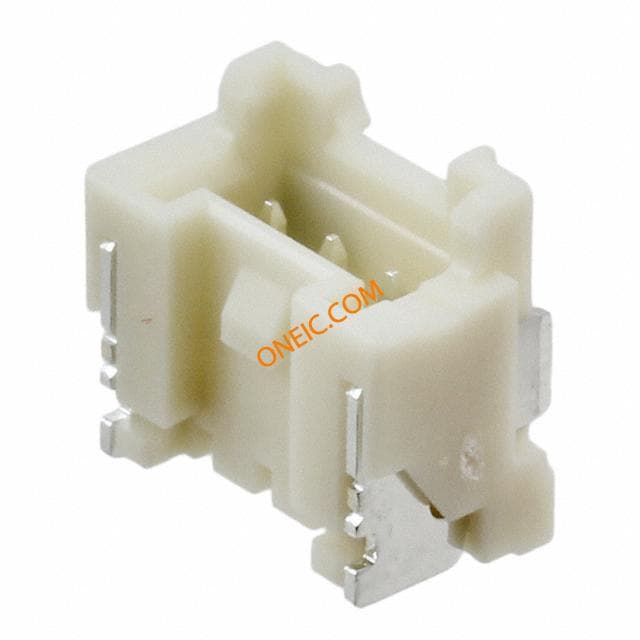

SM03B-PASS-TBT(LF)(SN)
JST Sales America Inc
CONN HEADER PA 3POS SIDE SMD PCB pin header Pitch2 mm Poles 3 Single row / 90° / with shroud / without a boss PA, SM03B-PASS-TBT (LF)(SN), JST
(SN).JPG&w=3840&q=75)

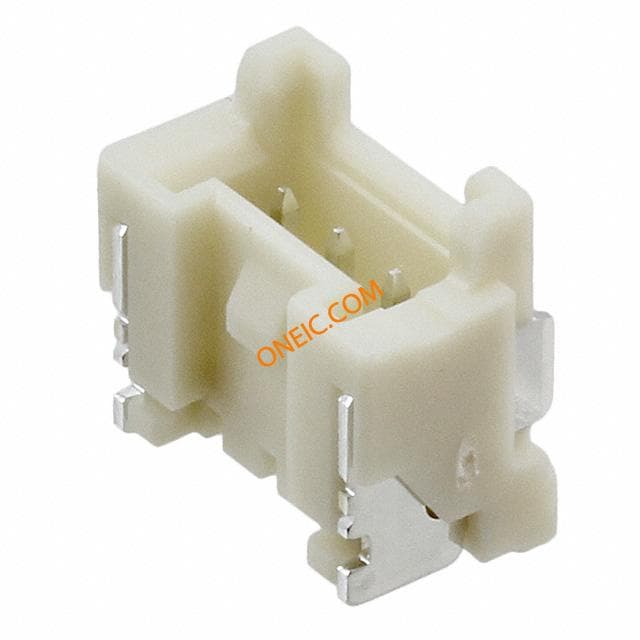

BM03B-PASS-1-TFT(LF)(SN)
JST Sales America Inc
CONN HEADER PA 3POS TOP SMD PCB pin header Pitch2 mm Poles 3 Single row / straight / with shroud / with a boss PA, BM03B-PASS-1-TFT (LF)(SN), JST
B03B-PAKK(LF)(SN)
JST Sales America Inc
CONN 2MM WIRE TO BOARD
(SN).JPG&w=3840&q=75)

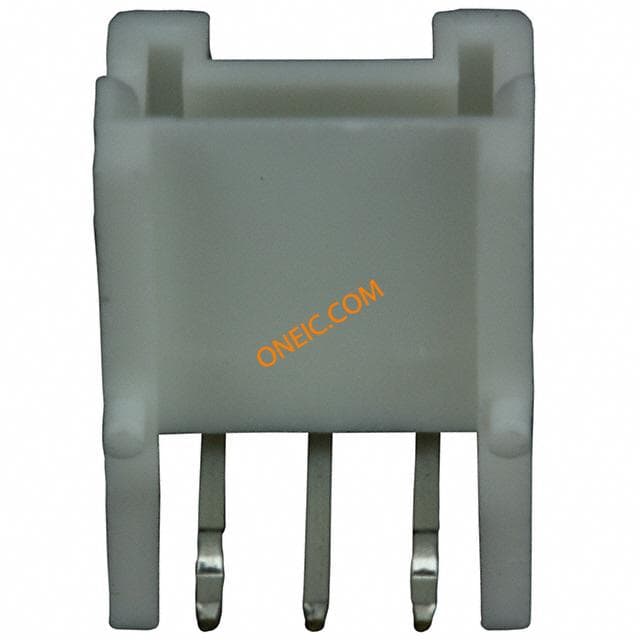

S03B-PASK-2(LF)(SN)
