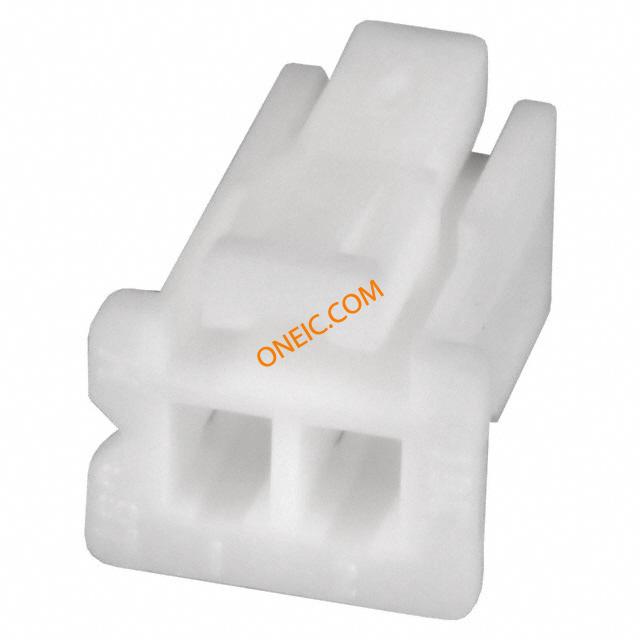

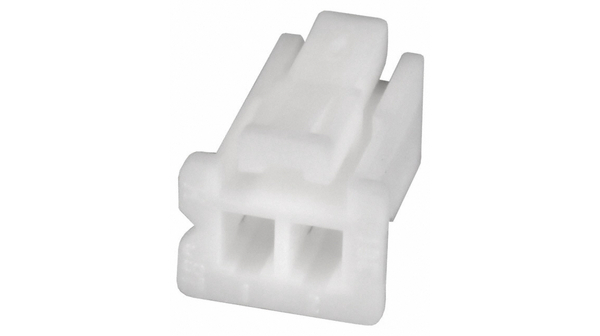

PAP-02V-S

Manufacturer	JST Mfg. Co., Ltd.
Description	CONN HOUSING PA 2POS 2MM WHITE 2 way socket housing PA 2.0 Crimp housing Pitch2 mm Poles 2 Single row / Free hanging/cable mount PA, PAP-02V-S, JST JST Polyamide 系列 2mm 节距 2 路直电缆安装 PCB 壳体
Category	Connector SolutionsRectangular ConnectorsFPC/FFC Rectangular Connectors

对参数有疑问？问 AI 助手

Business

Standard Package

1,000

Compliance

RoHS

Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage Rating	250	Number of Poles	2
Contact Resistance	10 mOhm	Current Rating (Max)	3 A
Insulation Resistance	1000 MOhm

Mechanical

Color	Natural	Depth	8mm
Pitch	0.079" (2.00mm)	Width	5.8mm
Length	6mm	Packaging	Bulk
Orientation	直	Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Fastening Type	Latch Lock	Number of Rows	1
Connector Style	Single row	Housing Material	Nylon
Color - Connectors	white	Number of Contacts	2
Contact Termination	Crimp	Number of Positions	2
1st Connector Gender	Female	Wire Gauge or Range - AWG	28...22 AWG

Product Info

Note	Contacts Not Provided	Type	Female housing
Series	PA	Connection Method	Wire-Board
For Use With/Related Products	Crimp Connector

Environmental

Operating Temperature

-25...+85 °C

Documents & Media

PDF Document

PA Series

Similar Parts

PALR-02VF

JST Sales America Inc

CONN HOUSING PAL 2POS 2MM WHITE

$0.2591

Details

PALR-02V

JST Sales America Inc

CONN HOUSING PAL 2POS 2MM WHITE

$0.3461

Details

SPHD-001T-P0.5

JST Sales America Inc

CONN TERM PHD CRIMP 22-26AWG TIN PHD contact 26 to 22 awg Crimp contact Female 26...22 AWG, SPHD-001T-P0.5, JST JST PHD 系列母压接接线端子, 压接, 镀锡触点

$0.1040

Details

SPHD-002T-P0.5

JST Sales America Inc

CONN TERM PHD CRIMP 24-28AWG TIN PHD contact 28 to 24 awg Contact; female; 0.08÷0.21mm2; 24÷28AWG; PHD; tinned; crimped; 3A JST PHD 系列母压接接线端子, 压接, 镀锡触点

$0.0229

Details

B02B-PASK-1(LF)(SN)

JST Sales America Inc

CONN HEADER PA 2POS TOP W/BOSS JST PA Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A JST Polyamide 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔

$0.4400

Details

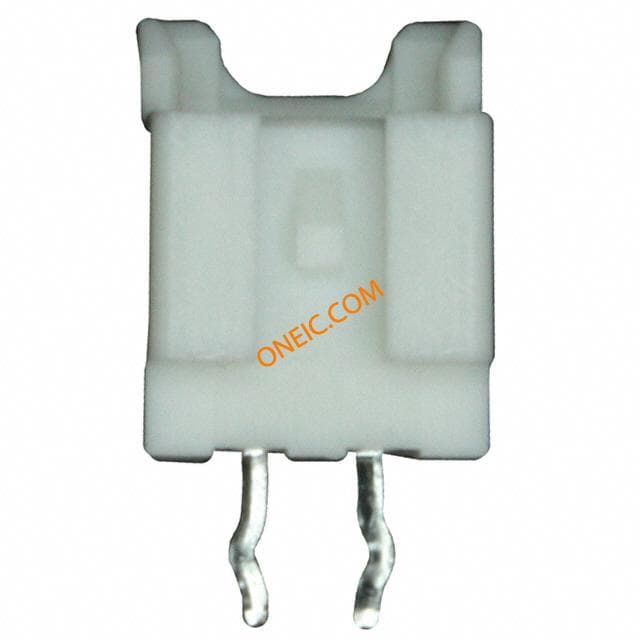

B02B-PASK(LF)(SN)

JST Sales America Inc

CONN HEADER PA 2POS TOP 2MM TIN

$0.3692

Details

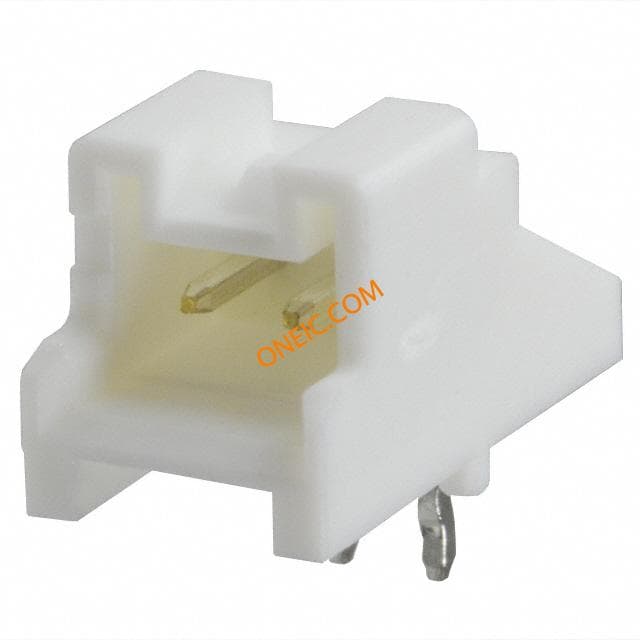

S02B-PASK-2(LF)(SN)
