EHR-4
| Manufacturer | |
| Description | CONN HOUSING EH 4POS 2.5MM CRIMP 4 way crimp socket housing,2.5mm pitch Conn Housing 4 POS 2.5mm Crimp ST Cable Mount Bag Plug; wire-board; female; PIN:4; w/o terminals; 2.5mm; for cable JST EH 系列 2.5mm 节距 4 路 直 电缆安装 PCB 壳体 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 250V | Current Rating (Max) | 3 A |
| Voltage - Supply (Min) | 250VDC/250VAC | Connector - Voltage Input | w/o terminals |
Mechanical
| Color | Natural | Depth | 7.1mm |
| Pitch | 0.098" (2.50mm) | Width | 3.8mm |
| Height | 3.8 mm | Length | 12mm |
| Weight | 0.15 g | Packaging | Bulk |
| Orientation | 直 | Contact Form | Female Socket |
| Contact Type | Female Socket | Pitch - Post | 2.5mm |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Mounting Style | for cable |
| Number of Rows | 1 | Housing Material | Nylon |
| Length - Overall | 12 mm | Package Quantity | 1000 |
| Connector - Cable | plug | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
| 1st Connector Mounting Feature | 1x4 | ||
Product Info
| Spg | 1000 | Note | Contacts Not Provided |
| Type | Housing | Series | EH |
| Adapter Series | EH | Number of Units | 1 |
| Output Configuration | Free Hanging (In-Line) | For Use With/Related Products | Disconnectable Crimp Connector |
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts
SEH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP EH 22-30AWG SEH-001T-P0.6 Contact; female; 22÷30AWG; EH; crimped; 2.5mm Crimp contact Female 30...22 AWG, SEH-001T-P0.6, JST JST EH 系列 母 压接接线端子, 压接, 镀锡触点
$0.0422
Details
SEH-001T-P0.6L
JST Sales America Inc
CONN TERM CRIMP EH 22-26AWG
$0.0326
Details

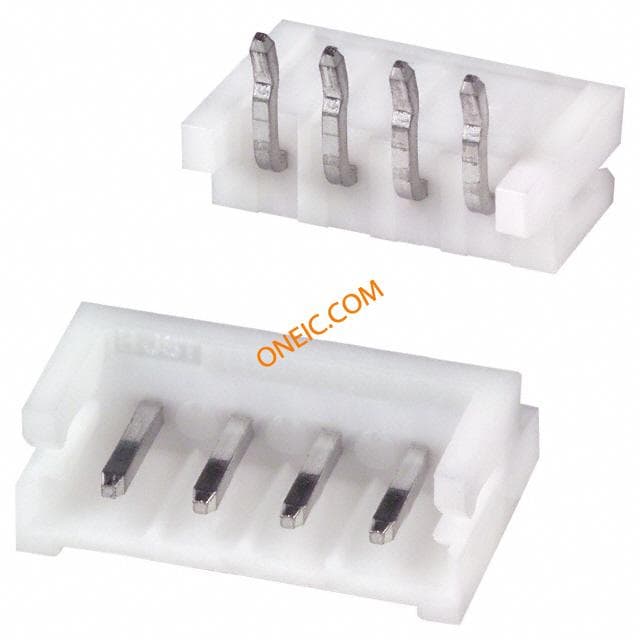

S4B-EH(LF)(SN)
JST Sales America Inc
CONN HEADER EH SIDE 4POS 2.5MM JST EH Series 2.5mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A JST EH 系列 2.5mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔
$0.3053
Details

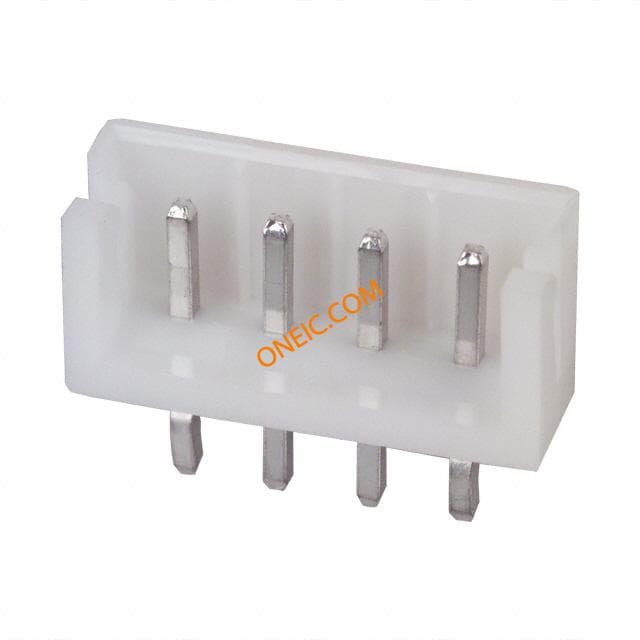

B4B-EH-A(LF)(SN)
