点击放大查看

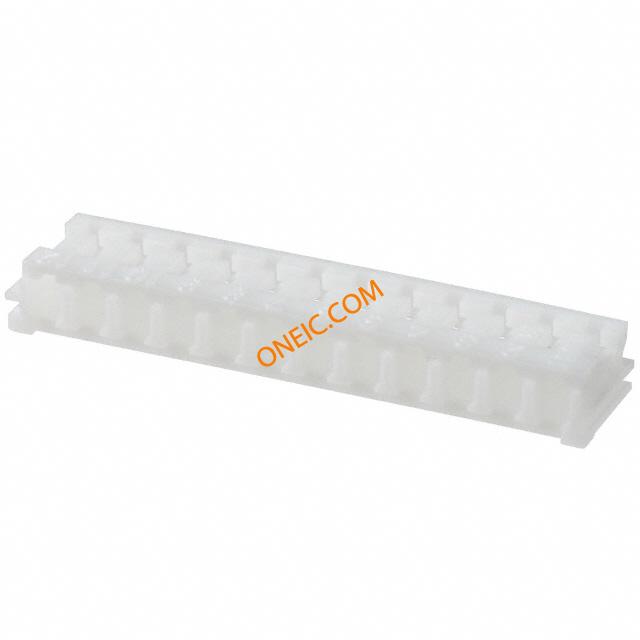

EHR-12
| Manufacturer | |
| Description | CONN HOUSING EH 12POS 2.5MM CRMP 12 way socket housing,EH 2.5 JST EH 系列 2.5mm 节距 12 路 直 电缆安装 PCB 壳体 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | ||
Mechanical
| Color | Natural | Depth | 7.1mm |
| Pitch | 0.098" (2.50mm) | Width | 3.8mm |
| Length | 32mm | Packaging | Bulk |
| Orientation | 直 | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Number of Rows | 1 | Housing Material | Nylon |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | ||
Product Info
| Note | Contacts Not Provided | Series | EH |
| For Use With/Related Products | Disconnectable Crimp Connector | ||
Documents & Media
PDF Document
Similar Parts
SEH-001T-P0.6
JST Sales America Inc
CONN TERM CRIMP EH 22-30AWG SEH-001T-P0.6 Contact; female; 22÷30AWG; EH; crimped; 2.5mm Crimp contact Female 30...22 AWG, SEH-001T-P0.6, JST JST EH 系列 母 压接接线端子, 压接, 镀锡触点
$0.0422
Details
SEH-001T-P0.6L
JST Sales America Inc
CONN TERM CRIMP EH 22-26AWG
$0.0326
Details

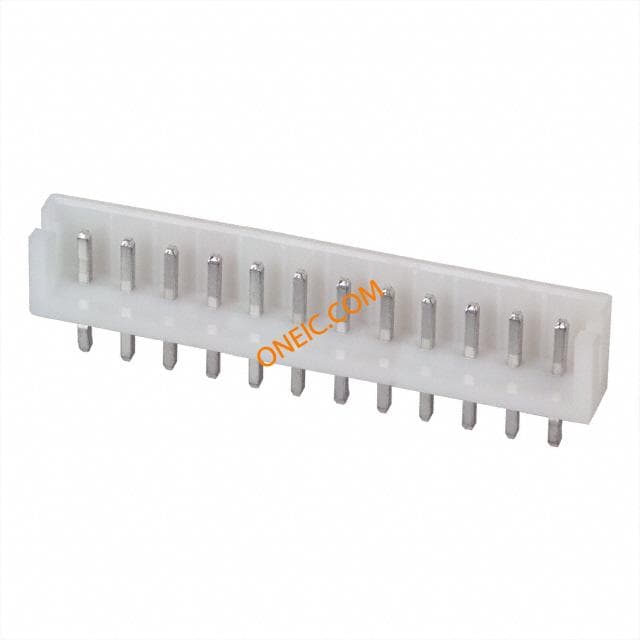

B12B-EH-A(LF)(SN)
JST Sales America Inc
CONN HEADER EH TOP 12POS 2.5MM JST EH Series 2.5mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 3A JST EH 系列 2.5mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔
$0.5916
Details

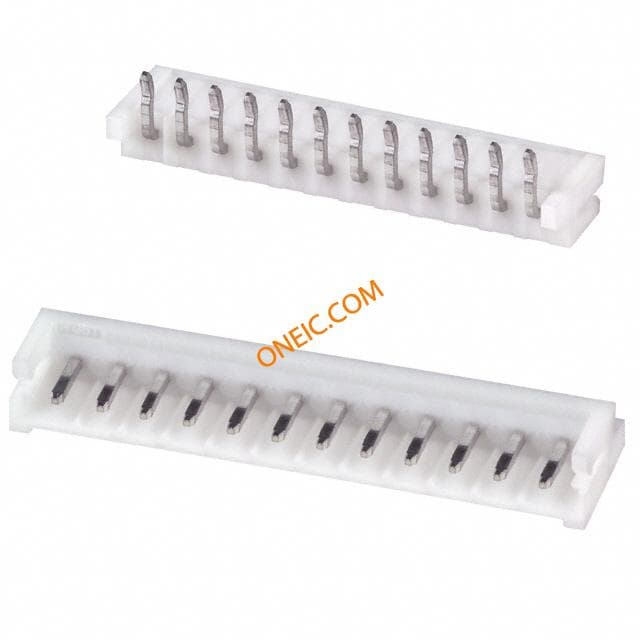

S12B-EH(LF)(SN)
