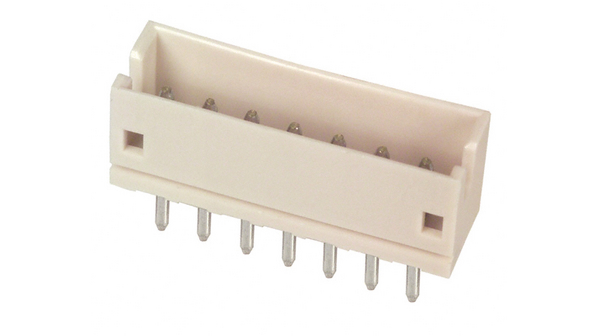

B7B-ZR
| Manufacturer | |
| Description | CONN HEADER ZH TOP 7POS 1.5MM Conn Shrouded Header HDR 7 POS 1.5mm Solder ST Thru-Hole Box Pin header, single-row straight 1.5 mm Poles 7 ZH, B7B-ZR, JST |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 455-1234 | Standard Package | 1,000 |
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 500 | Voltage Rating | 50 |
| Number of Poles | 7 | Contact Resistance | 30 mohm |
| Current Rating (Max) | 1 A | Insulation Resistance | 500 MOhm |
| Voltage - Supply (Min) | 50VDC/50VAC | ||
Mechanical
| Color | Natural | Depth | 3.5 mm |
| Pitch | 0.059" (1.50mm) | Height | 4.5 mm |
| Packaging | Bulk | Body Color | 12 |
| Termination | Press-Fit | Contact Type | Male Pin |
| Housing Color | Ivory | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Tin-Lead |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide 66 |
| Length - Overall | 12 mm | Number of Contacts | 1 |
| Number of Positions | 7 | 1st Connector Gender | Male |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | ZH | Amplifier Type | 9 |
| Connection Method | Wire-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -25C to 85C | ||
