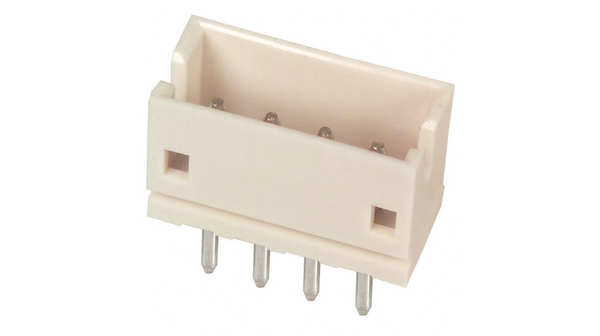

B4B-ZR
| Manufacturer | |
| Description | CONN HEADER ZH TOP 4POS 1.5MM Pin header, single-row straight 1.5 mm Poles 4 ZH, B4B-ZR, JST |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 2,000 | ||
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 500 | Voltage Rating | 50 |
| Number of Poles | 4 | Contact Resistance | 20 mOhm |
| Current Rating (Max) | 1 A | Insulation Resistance | 500 MOhm |
Mechanical
| Color | Natural | Pitch | 0.059" (1.50mm) |
| Packaging | Bulk | Body Color | 7.5 |
| Termination | Press-Fit | Contact Type | Male Pin |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin-Lead | Number of Rows | 1 |
| Contact Material | Tin-plated phosphor bronze | Housing Material | Polyamide (PA/Nylon) |
| Number of Positions | 4 | 1st Connector Gender | Male |
Product Info
| Series | ZH | Amplifier Type | 4.5 |
| Connection Method | Wire-Board | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -25...+85 °C | ||
