B2B-PH-K-S(LF)(SN)
| Manufacturer | |
| Description | CONN HEADER PH TOP 2POS 2MM JST PH Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 2A Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Box JST PH 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 1,000 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100 V ac/dc | Contact Resistance | 20 mohm |
| Current Rating (Max) | 2A | Voltage - Supply (Min) | 100VDC/100VAC |
Mechanical
| Color | Natural | Depth | 4.5 mm |
| Pitch | 0.079" (2.00mm) | Height | 6 mm |
| Packaging | Bulk | Orientation | 直 |
| Termination | Press-Fit | Contact Form | Male Pin |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Through Hole | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Brass |
| Housing Material | Polyamide 66 | Length - Overall | 5.9 mm |
| Termination Rows | 焊接 | Number of Contacts | 2 |
| Number of Positions | 2 | Number of Positions/Bay/Row | All |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | PH | Coverage | 覆盖 |
| Base Product Number | B2B | Output Configuration | Through Hole |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -25C to 85C | ||
Documents & Media
PDF Document
Similar Parts

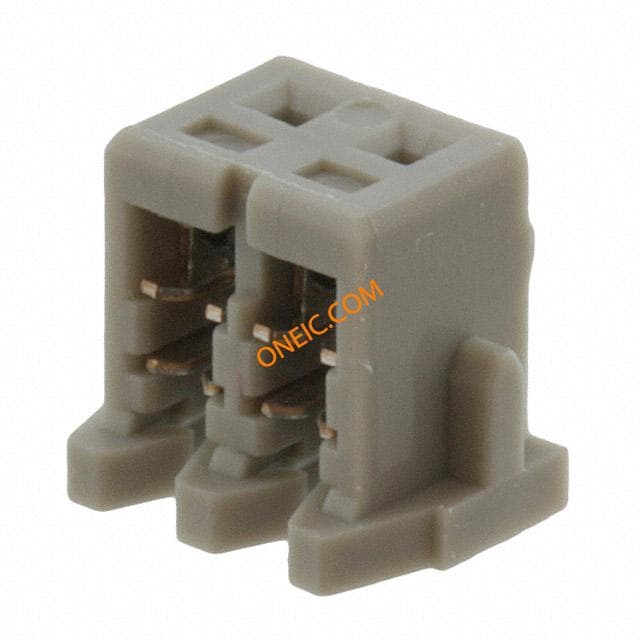

02KR-6H-P
JST Sales America Inc
CONN SOCKET 2POS 2MM IDC 2 Position Throgh Hole 2.0mm Pitch Gray Insulation Displacement Receptacle
$0.2638
Details

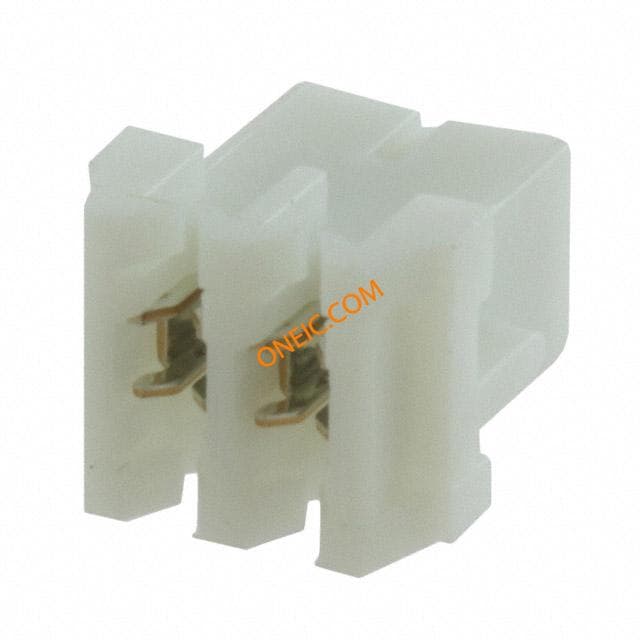

02KR-D6S-P
