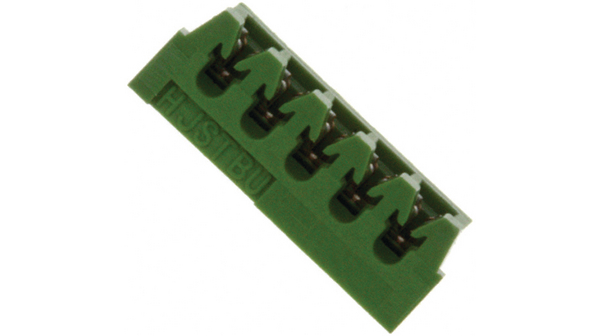

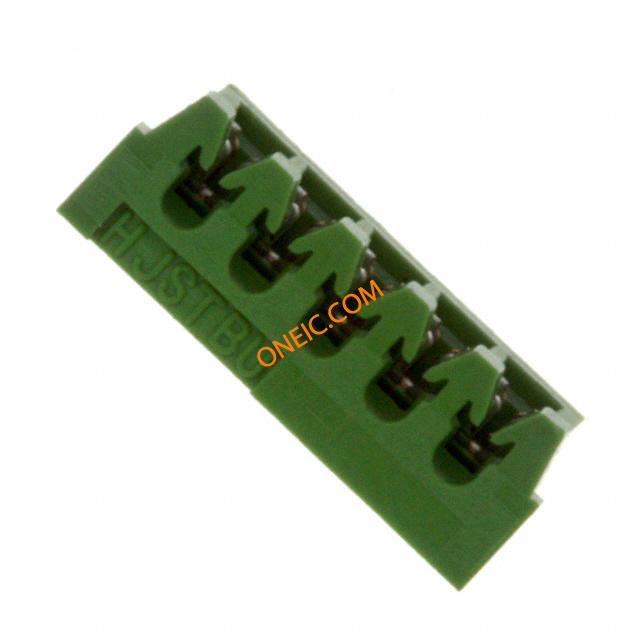

05ZR-8M-P
| Manufacturer | |
| Description | CONN IDC ZR 5POS 1.5MM 28AWG Socket IDC connection 5P 1.5 mm Poles 5 ZR, 05ZR-8M-P, JST |
| Category |
Business
| Standard Package | 2,000 | ||
Compliance
| Material Flammability Rating | UL 94 V-0 | ||
Electrical
| Voltage - Test | 500 | Voltage Rating | 50 |
| Number of Poles | 5 | Contact Resistance | 20 mOhm |
| Current Rating (Max) | 0.7 A | Insulation Resistance | 500 MOhm |
Mechanical
| Color | Green | Pitch | 0.059" (1.50mm) |
| Packaging | Bulk | Wire Type | Discrete |
| Body Color | 9 | Cable Type | Discrete |
| Wire Gauge | 28 AWG | Contact Form | Female Socket |
| Contact Type | Female Socket | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Contact Finish | Tin |
| Number of Rows | 1 | Contact Material | Tin-plated phosphor bronze |
| Housing Material | Polyamide (PA/Nylon) | Cable Termination | IDC |
| Number of Positions | 5 | 1st Connector Gender | Female |
Product Info
| Series | ZR | Features | Closed End |
| Main Purpose | Closed End | Amplifier Type | 6 |
| Connection Method | Wire-Board | Output Configuration | Free Hanging (In-Line) |
Environmental
| Operating Temperature | -25...+85 °C | ||
Similar Parts
20.JPG&w=3840&q=75)
IDHZR(F)20
JST Sales America Inc
HEAD ADAPTER ZR SERIES Crimpers - Crimp Heads, Die Sets

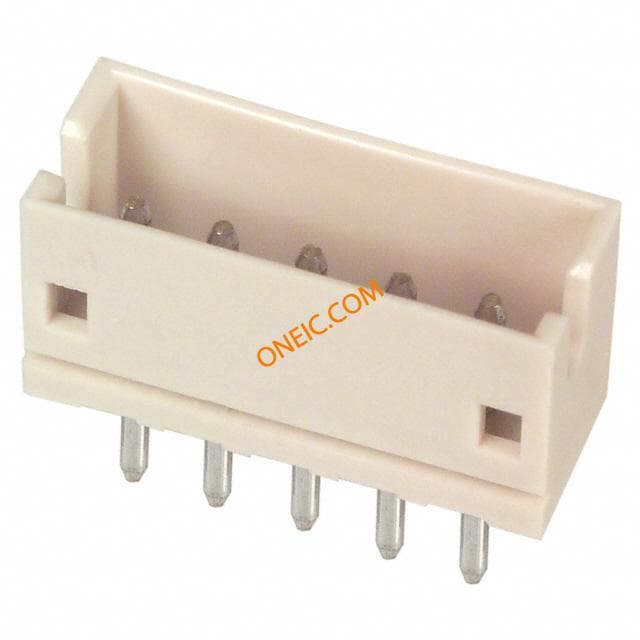

B5B-ZR(LF)(SN)
JST Sales America Inc
CONN HEADER ZH TOP 5POS 1.5MM JST ZH Series 1.5mm Pitch 5 Way 1 Row Top Entry PCB Header, Solder Termination, 1A JST ZH Series 1.5mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 1A JST ZH 系列 5路 1.5mm节距 (1排) 顶入 PCB 针座 , 焊接端接, 1A, 通孔

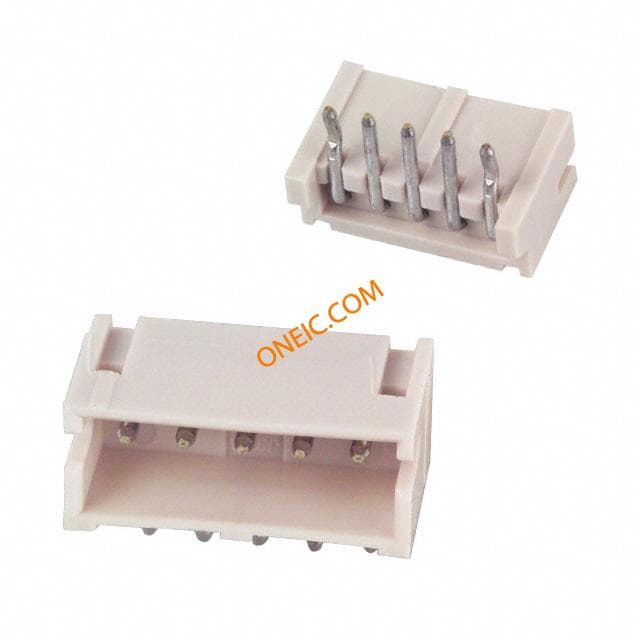

S5B-ZR(LF)(SN)
JST Sales America Inc
CONN HEADER ZH SIDE 5POS 1.5MM JST ZH Series 1.5mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 1A JST ZH Series 1.5mm Pitch 5 Way 1 Row Side Entry PCB Header, Solder Termination, 1A JST ZH 系列 1.5mm节距 5路 (1排) 侧入 PCB 针座, 焊接端接, 1A S5B-ZR (LF)(SN), 通孔

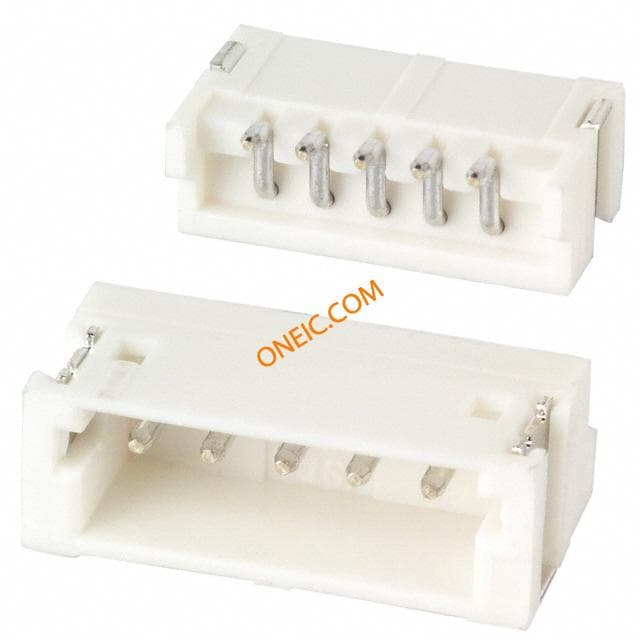

S5B-ZR-SM4A-TF(LF)(SN)
