L-14C18NJV4T
| Manufacturer | |
| Description | Ind RF Chip Multi-Layer 18nH 5% 100MHz 10Q-Factor Ceramic 300mA 0603 Paper T/R Inductor RF Chip Multi-Layer 18nH 5% 100MHz 10Q-Factor Ceramic 300mA 500mOhm DCR 0603 Paper T/R CER INDUCTOR 18NH 0603 Fixed Inductors 18nH 5% INDUCTOR RF, 0603, 18NH, 5% |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | RF Ceramic Chip Inductors | Other Names | 712-1437-1 |
| Standard Package | 4,000 | ||
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
Electrical
| Q @ Freq | 10@100MHz | Core Type | :Multilayer |
| Qmax @ Th | 12 | Tolerance | 5 % |
| Inductance | 18 nH | Range deg/s | :JOHANSON - L-14C Series |
| Test Frequency | 100MHz | Inductance Range | :± 5% |
| Current Rating - DC | :300mA | DC Resistance (DCR) | 500 mOhm Max |
| Current Rating (Max) | 300 mA | DC Resistance (DCR) (Max) | :0.5ohm |
| Frequency - Self Resonant | 2.1GHz | Resistance - Initial (Ri) (Min) | 500 mOhm |
Mechanical
| Depth | 0.95 | Width | 0.8 mm |
| Height | 0.95 mm | Weight | 0.00002 |
| Packaging | Paper Tape and Reel | Shielding | Unshielded |
| Core Material | Ceramic | Mounting Type | Surface Mount |
| Package / Case | 0603 | Material - Core | Ceramic |
| Length - Overall | 1.75 | Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Termination Style | SMD/SMT | Height - Seated (Max) | 0.037" (0.95mm) |
| Supplier Device Package | 0603 (1608 Metric) | ||
Product Info
| Type | RF Chip | Technology | Multi-Layer |
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts

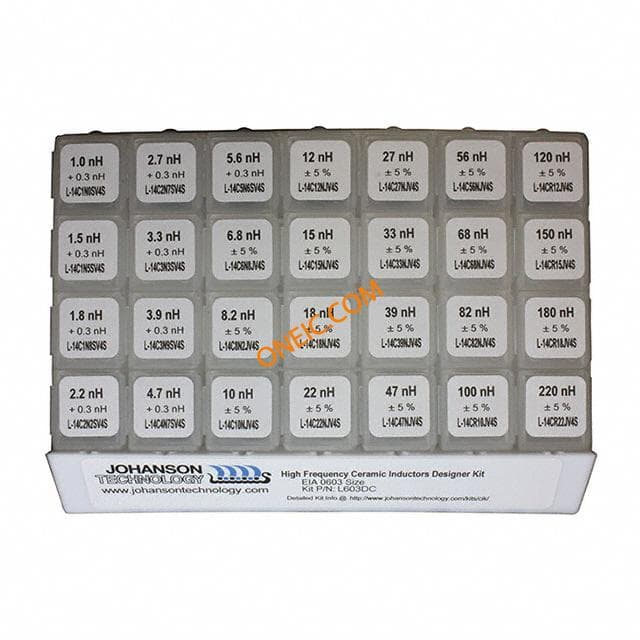

L603DC
