L-07C2N7SV6T
| Manufacturer | |
| Description | Ind RF Chip Multi-Layer 2.7nH 0.3nH 100MHz 8Q-Factor Ceramic 300mA 0402 Paper T/R Inductor RF Chip Multi-Layer 2.7nH 0.3nH 100MHz 8Q-Factor Ceramic 300mA 170mOhm DCR 0402 Paper T/R CER INDUCTOR 2.7NH 0402 Fixed Inductors 2.7nH INDUCTOR RF, 0402, 2.7NH, ±0.3NH |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | RF Ceramic Chip Inductors | Other Names | 712-1415-1 |
| Standard Package | 10,000 | ||
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
Electrical
| Q @ Freq | 8@100MHz | Core Type | :Multilayer |
| Qmax @ Th | 8 | Tolerance | 0.3 nH |
| Inductance | 2.7 nH | Range deg/s | :JOHANSON - L-07C Series |
| Test Frequency | 100MHz | Inductance Range | :± 0.3nH |
| Current Rating - DC | :300mA | DC Resistance (DCR) | 170 mOhm Max |
| Current Rating (Max) | 300 mA | DC Resistance (DCR) (Max) | :0.17ohm |
| Frequency - Self Resonant | 9.5GHz | Resistance - Initial (Ri) (Min) | 170 mOhm |
Mechanical
| Depth | 0.6 | Width | 0.5 mm |
| Height | 0.6 mm | Weight | 0.00002 |
| Packaging | Paper Tape and Reel | Shielding | Unshielded |
| Core Material | Ceramic | Mounting Type | Surface Mount |
| Package / Case | 0402 | Material - Core | Ceramic |
| Length - Overall | 1.1 | Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Termination Style | SMD/SMT | Height - Seated (Max) | 0.024" (0.60mm) |
| Supplier Device Package | 0402 (1005 Metric) | ||
Product Info
| Type | RF Chip | Series | L-07 |
| Technology | Multi-Layer | ||
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts
WUWBL/C402D
Johanson Technology Inc
0402 WIMAX DESIGNER KIT Component Kits 5.5GHz DESIGNER KIT WiMAX & UWB
$678.3000
Details

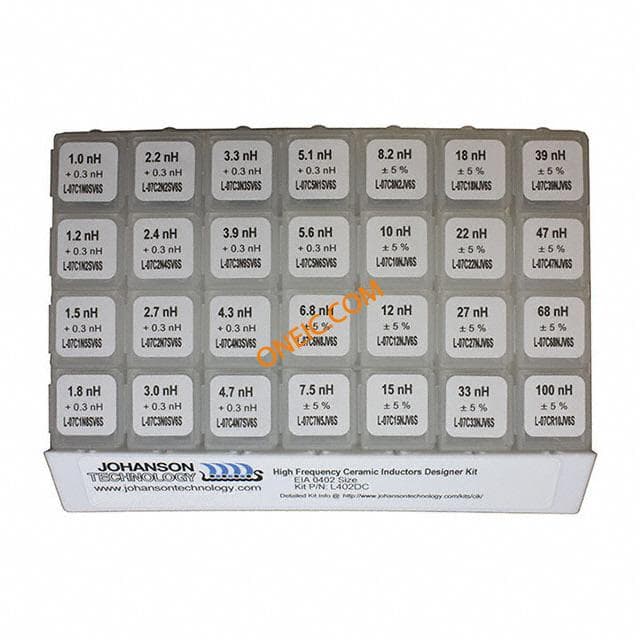

L402DC
