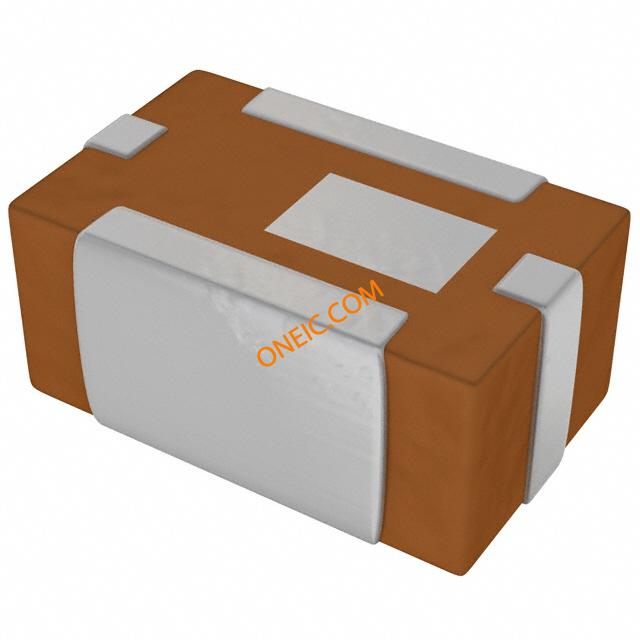

2500BP15M400E
| Manufacturer | |
| Description | Electromechanical Filter 50Ohm FILTER BANDPASS WIMAX 2.5GHZ Signal Conditioning 2.5GHz BPF |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Band Pass Filters | Other Names | 712-1097-1 |
| Standard Package | 4,000 | ||
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | EU RoHS | Compliant |
Electrical
| Frequency | 2.5GHz Center | Impedance | 50 Ohm |
| Filter Type | Band Pass | Insertion Loss | 2dB |
| Frequency Range | 2.3 GHz to 2.7 GHz | Frequency Response | BPF |
| Insertion Loss (Max) | 2 dB | ||
Mechanical
| Bandwidth | 400MHz | Packaging | Tape and Reel |
| Height (Max) | 0.041" (1.05mm) | Mounting Type | Surface Mount |
| Package / Case | 0805 (2012 Metric), 4 PC Pad | Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Termination Style | SMD/SMT | ||
Product Info
| Type | Band Pass Filter | ||
Environmental
| Operating Temperature | -40 to 85 °C | ||
