2450AT45A100E
| Manufacturer | |
| Description | Antenna Ceramic 3dB Gain 2500MHz 2-Pin T/R ANTENNA CHIP 2.4GHZ Antennas 2.45GHz ANTENNA HIGH GAIN (VERT) ANTENNA, CERAMIC, 2.45GHZ |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 712-1012-1 | Standard Package | 1,000 |
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85322400 |
Electrical
| Gain | 1dBi | Frequency | 2.4GHz ~ 2.5GHz |
| Impedance | 50 Ohm | Return Loss | :9.5dB |
| Antenna Type | Chip | Power - Input | :3W |
| Power - Rated | 3 W | Frequency - Max | 2500 MHz |
| Frequency - Min | 2400 MHz | Frequency Range | 2.4 GHz to 2.5 GHz |
| Input Impedance | :50ohm | Power - Peak Pulse | 3000 mW |
Mechanical
| Width | 2 mm | Height | 1.2 mm |
| Length | 9.5 mm | Weight | 0.0001 |
| Bandwidth | :100MHz | Packaging | Tape & Reel (TR) |
| Termination | Surface Mount | Height (Max) | 0.05" (1.3mm) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Length - Overall | 9.5 | Size / Dimension | 9.5 mm L x 2 mm W x 1.2 mm H |
| Termination Style | SMD/SMT | Number of Positions | 2 |
| Shell Size - Insert | 1.2 | ||
Product Info
| Type | Ceramic | Series | 2450AT |
| Technology | Internal SMD Chip Antenna | Number of Bands | 1 |
| Printed Circuit Board | 2 | ||
Environmental
| Luminous Flux @ Current/Temperature | 3 dB | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)

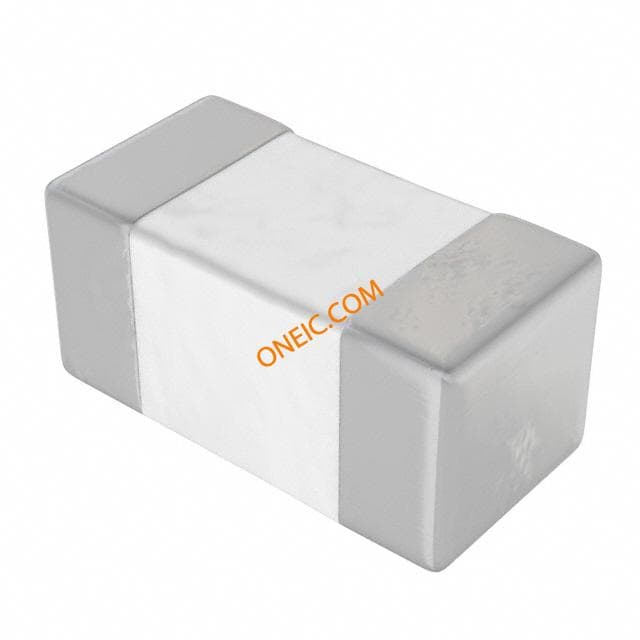

L-07C3N9SV6T
