L-14W5N6CV4E
| Manufacturer | |
| Description | Inductor RF Chip Wirewound 5.6nH 0.2nH 250MHz 16Q-Factor Ceramic 700mA 110mOhm DCR 0603 Embossed T/R Fixed Inductors 5.6nH 0.2 INDUCTOR RF WW, 0603, 5.6NH, ±0.2NH CER INDUCTOR 5.6NH 0.2% 0603 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | RF Wirewound Chip Inductors | Standard Package | 3,000 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
Electrical
| Q @ Freq | 16@250MHz | Core Type | :Wirewound |
| Qmax @ Th | 60 | Tolerance | 0.2nH |
| Inductance | 5.6n | Range deg/s | :JOHANSON - L-14W Series |
| Test Frequency | 900 MHz | Inductance Range | :± 0.2nH |
| Current Rating - DC | :700mA | DC Resistance (DCR) | 110 mOhm Max |
| Current Rating (Max) | 700 mA | DC Resistance (DCR) (Max) | :0.11ohm |
| Frequency - Self Resonant | 13 GHz | Resistance - Initial (Ri) (Min) | 80 mOhms |
Mechanical
| Depth | 1.25 | Width | 1.05 mm |
| Height | 1.25 | Weight | 0.00002 |
| Packaging | Embossed Tape and Reel | Shielding | Unshielded |
| Core Material | Ceramic | Mounting Type | Surface Mount |
| Package / Case | 0603 | Material - Core | Ceramic |
| Length - Overall | 1.8 | Size / Dimension | 1.05 mm W x 1.6 mm L x 1.05 mm H |
| Termination Style | SMD/SMT | Height - Seated (Max) | 0.037" (0.94mm) |
| Supplier Device Package | 0603 (1608 Metric) | ||
Product Info
| Type | RF Chip | Technology | Wirewound |
Environmental
| Operating Temperature | - 40 C to + 125 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

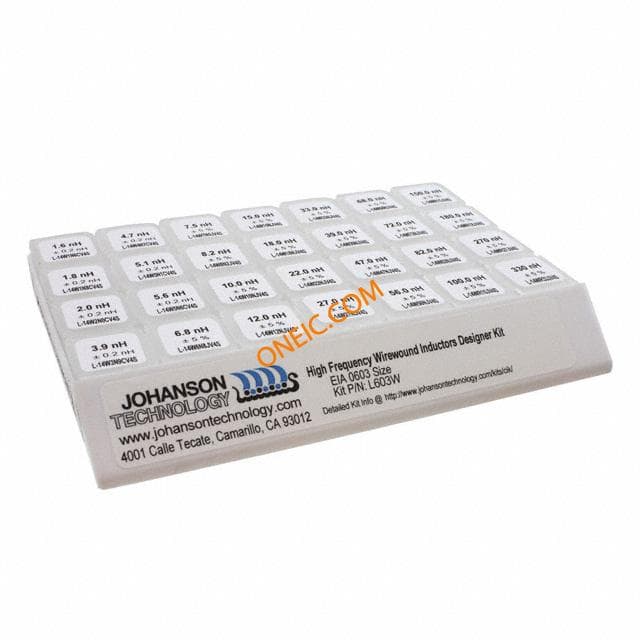

L603W
