L-05B27NJV6T
| Manufacturer | |
| Description | Ind RF Chip Multi-Layer 27nH 5% 100MHz 4Q-Factor Ceramic 200mA 0201 Paper T/R IND CER RF 27NH 0201 Fixed Inductors 27nH 5% INDUCTOR RF, 0201, 27NH, 5% |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | RF Ceramic Chip Inductors | Other Names | 712-1497-1 |
| Standard Package | 15,000 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85045095 |
Electrical
| Q @ Freq | 4@100MHz | Core Type | :Multilayer |
| Qmax @ Th | 4 | Tolerance | 5% |
| Inductance | 27n | Range deg/s | :JOHANSON - L-05B Series |
| Test Frequency | 100MHz | Inductance Range | :± 5% |
| Current Rating - DC | :200mA | DC Resistance (DCR) | 2 Ohm Max |
| Current Rating (Max) | 200mA | DC Resistance (DCR) (Max) | :2ohm |
| Frequency - Self Resonant | 1.8GHz | Resistance - Initial (Ri) (Min) | 1.55 Ohms |
Mechanical
| Depth | 0.33 | Width | 0.3 mm |
| Height | 0.33 | Weight | 0.00002 |
| Packaging | Paper Tape and Reel | Shielding | Unshielded |
| Core Material | Ceramic | Mounting Type | Surface Mount |
| Package / Case | 0201 | Material - Core | Ceramic |
| Length - Overall | 0.63 | Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Termination Style | SMD/SMT | Height - Seated (Max) | 0.013" (0.33mm) |
| Supplier Device Package | 0201 (0603 Metric) | ||
Product Info
| Type | RF Chip | Technology | Multi-Layer |
Environmental
| Operating Temperature | -40°C ~ 100°C | ||
Documents & Media
PDF Document
PDF Document
PDF Document
Similar Parts

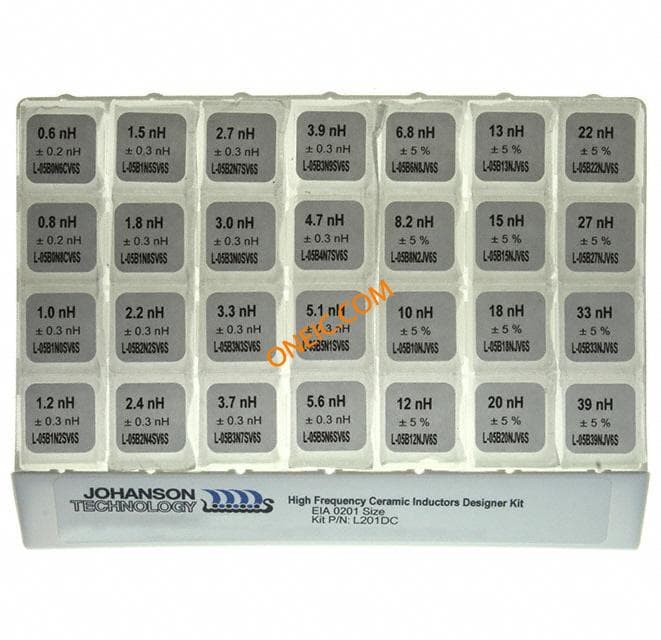

L201DC
