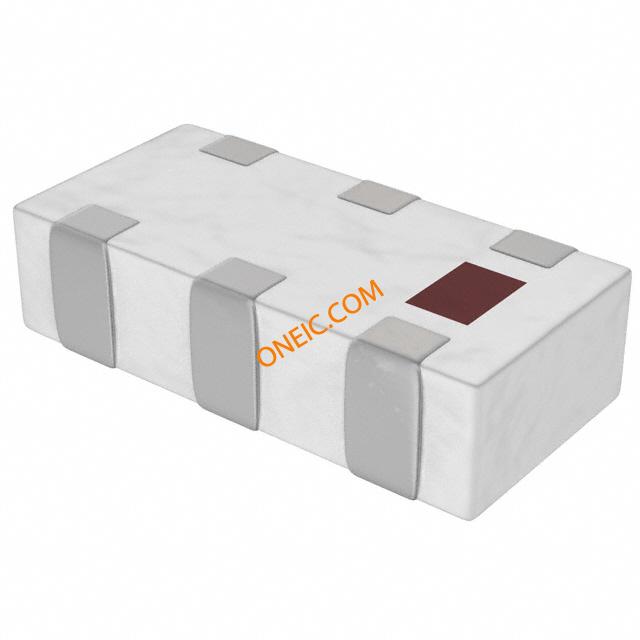

2100BL18B200E
| Manufacturer | |
| Description | 2.1GHZ RF BALUN 1:4 EIA 1206 S BALUN WCDMA 2100MHZ Signal Conditioning 2000-2200 MHz Balun Ceramic Chip |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Baluns | Other Names | 712-1033-1 |
| Standard Package | 1 | ||
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | ||
Electrical
| Frequency | 2.1 GHz | Impedance | 50 Ohms, 200 Ohms |
| Insertion Loss | 0.8 dB | Frequency Range | 2GHz ~ 2.2GHz |
| Phase Difference | 180° ±10 | Return Loss (Min) | 9.5dB |
| Insertion Loss (Max) | 0.8dB | Impedance - Unbalanced/Balanced | 50 / 200 Ohm |
Mechanical
| Packaging | Cut Tape (CT) | Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) | Termination Style | SMD/SMT |
Product Info
| Type | High Frequency Ceramic | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
