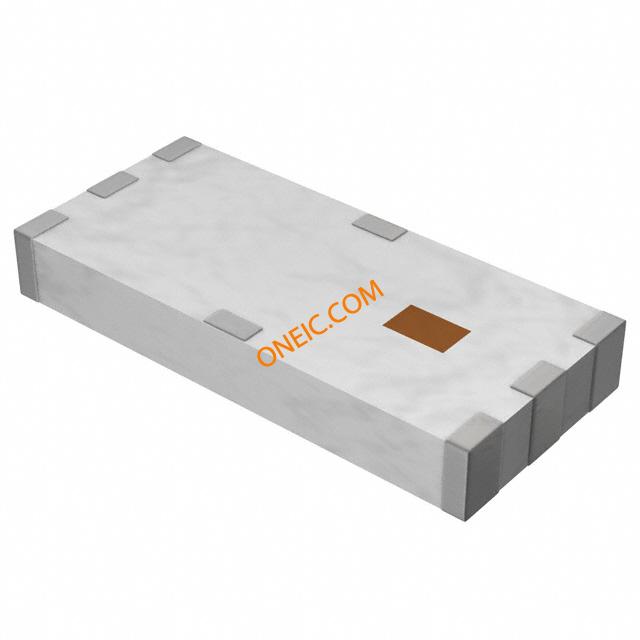

0920AT50A080E
| Manufacturer | |
| Description | ANTENNA WITH 920 MHZ AND IMPEDANCE 50 OHM ANTENNA CHIP ISM 920 MHZ Antennas 920MHz ANTENNA ANTENNA, CERAMIC, 920MHZ |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 712-1002-1 | Standard Package | 1,000 |
Compliance
| RoHS | Lead free by exemption / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85322400 | ||
Electrical
| Gain | -2.6dBi | Frequency | 880MHz ~ 960MHz |
| Impedance | 50 Ohms | Antenna Type | Chip |
| Power - Rated | 5 W | Frequency Range | 880 MHz to 960 MHz |
Mechanical
| Width | 5.1 mm | Height | 1.5 mm |
| Length | 11 mm | Weight | 0.0001 |
| Bandwidth | :80MHz | Packaging | Tape & Reel (TR) |
| Termination | Surface Mount | Height (Max) | 0.06" (1.7mm) |
| Mounting Type | Surface Mount | Mounting Style | SMD/SMT |
| Size / Dimension | 11 mm L x 5.1 mm W x 1.5 mm H | Termination Style | SMD/SMT |
Product Info
| Series | 0920AT | Technology | Internal SMD Chip Antenna |
| Number of Bands | 1 | ||
Documents & Media
PDF Document
