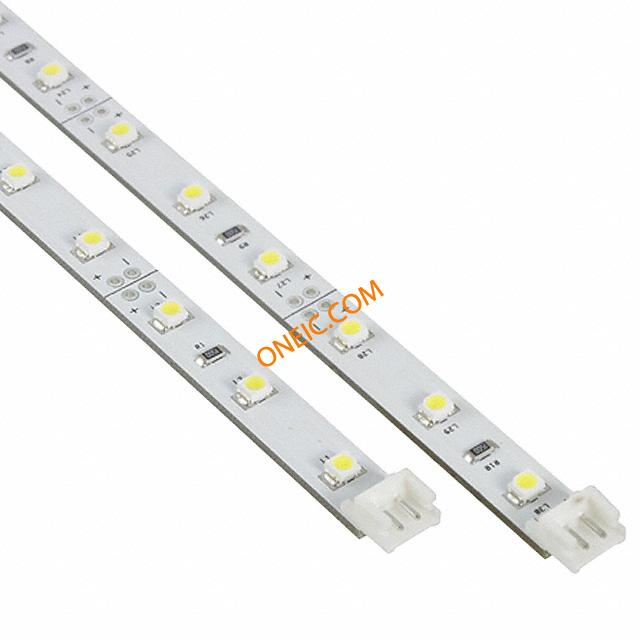

ZRS-8480-CW
| Manufacturer | |
| Description | LED Lighting Modules 8.0mm X 480mm LED Cool White Light Bar LED COOL WHITE LIGHT BAR STRIP Cool White LED light bar,12VDC,480mm LED PCB Bar 8mm X 480mm 12VDC Cool White |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | LED Light Strips, Rigid | Product Category | LED Lighting Modules |
| Standard Package | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| LED | 30 | Current | 200mA |
| Beam Angle | 120 deg | w/LED Driver | Yes |
| Luminous Flux | 90 lm | Power - Rated | 2.4 W |
| Viewing Angle | 120° | Voltage Rating | 12V |
| Voltage - Supply | Constant Current, Constant Voltage | LED Forward Current | 200 mA |
| LED Forward Voltage | 12 V | Wavelength - Dominant | 6500 K |
Mechanical
| Size | 480 mm x 8 mm x 5.5 mm | Color | White |
| Width | 8 mm | Height | 5.5 mm |
| Length | 480 mm | LED Color | White |
| Packaging | Tube | Mounting Type | Chassis Mount |
| Size / Dimension | 480 x 8 x 5.5mm | Illumination Color | Cool White |
Product Info
| Series | ZRS | Number of LEDs | 30 |
| Connection Type | ZCH-200-I | ||
Environmental
| Luminous Flux @ Current/Temperature | 90 lm | ||
