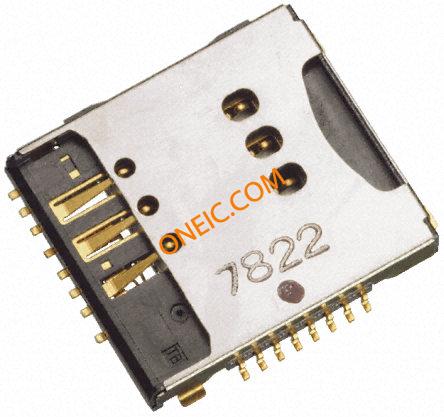

ST5S014V4A
| Manufacturer | |
| Description | Micro SD / Sim Card combo CONNECTOR, MICRO SD/SIM, COMBO |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Tariff No | 85366930 | Material Flammability Rating | :UL94V-0 |
Electrical
| Contact Resistance | :100mohm | Voltage - Breakdown | :500V |
| Insulation Resistance | :1000Mohm | ||
Mechanical
| Depth | 18.8mm | Width | 2.8mm |
| Length | 16.3mm | Weight | 0.03 |
| Termination | Solder | Mounting Type | Right Angle |
| Connector Type | :Memory Card | Contact Finish | Gold over Nickel |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Liquid Crystal Polymer | Size / Dimension | 16.3 x 2.8 x 18.8mm |
| Number of Contacts | 14 | Contact Termination | :Surface Mount Right Angle |
Product Info
| Gender | Female | Series | :ST5 |
| Card Type | SIM | ||
Environmental
| Operating Temperature | +85°C | ||
