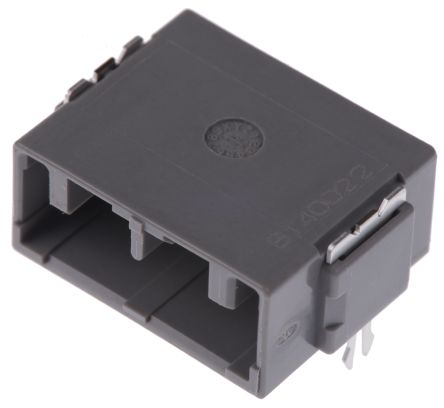

MX34007NF1
| Manufacturer | |
| Description | 07P FEMALE HOUSING GRAY JAE MX34 Series 2.2mm Pitch 7 Way 1 Row Right Angle PCB Header, Solder Termination, 3A HEADER, SINGLE ROW, 2.2MM, R/A, 7WAY JAE MX34 系列 2.2mm节距 7路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 20 | Unit Pack | 20 |
Compliance
| RoHS | Not Applicable | Tariff No | 85366930 |
| Automotive | CERTIFICAT | Leadfree Defin | RoHS-conform |
Electrical
| Contact Resistance | :5mohm | Voltage - Breakdown | :1000V |
| Current Rating (Max) | 3A | Insulation Resistance | :100Mohm |
Mechanical
| Pitch | 2.2mm | Weight | 0.04 |
| Termination | Solder | Mounting Type | Right Angle |
| Connector Type | :Rectangular | Contact Finish | :Tin |
| Number of Rows | 1 | Contact Material | Brass |
| 1st Contact Gender | :Pin | Number of Contacts | 07 |
| Contact Termination | :Solder | Shell Size - Insert | :- |
| Wire Gauge or Range - mm2 | FEMALEmm | 1st Connector Mounting Type | :PCB |
Product Info
| Type | Wire to Board | Gender | :Header |
| Series | MX34 | Matchcode | MX34007NF1 |
| Technology | -40 TO 85 | Standard Leadtime | 20 weeks |
Environmental
| Mating Cycles | :50 | Operating Temperature | :85°C |
