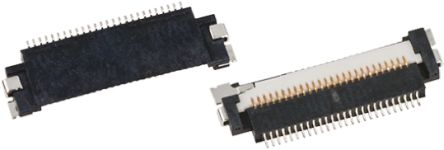

FA5S026HP1
| Manufacturer | |
| Description | 26P ZIF CONNECTOR 0,5MM GOLD FA5 26w 0.5mm pitch hinge type FFC R/A FFC, 0.5MM, R/A, HINGE, 26WAY JAE FA5 系列 0.5mm 节距 26 路 直角 SMT FPC 连接器, 带锁定机制, 锡 电镀触点 ZIF 底部触点 |
| Category |
对参数有疑问？问 AI 助手
Business
| MOQ | 100 | Unit Pack | 100 |
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Automotive | NO | Leadfree Defin | RoHS-conform |
| Approval Agency | -40 TO 85 | ||
Electrical
| Voltage Rating | 250 V ac | Contact Resistance | :20mohm |
| Current Rating (Max) | GOLDA | Current - Max/Contact | :0.8A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Pitch | 0.5mm | Weight | 0.05 |
| Cable Exit | 0.50 | Wire Gauge | SMT |
| Shield Type | 250 | Termination | Solder |
| Contact Type | FEMALE | Mounting Type | Right Angle |
| Contact Finish | Tin | Number of Rows | 01 |
| Locking Feature | Yes | Contact Material | Copper Alloy |
| Contact Position | :Bottom | Housing Material | SOLDER |
| FFC, FCB Thickness | :0.3mm | Number of Contacts | 26 |
| Contact Termination | :Surface Mount Right Angle | ||
Product Info
| Gender | :- | Series | RIGHTANGLE |
| Matchcode | FA5S026HP1 | Standard Leadtime | 17 weeks |
Environmental
| Mating Cycles | 0.8 | Operating Temperature | +85°C |
