WD2M144WB1R300
| Manufacturer | |
| Description | PCI Express / PCI Connectors 144P Docking Plug PCI Express 17.9mm CONN PLUG DOCK SIDE 144POS SMD |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 670-2383-2 | Product Category | PCI Express / PCI Connectors |
| Standard Package | 300 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Mechanical
| Pitch | 0.020" (0.50mm) | Height | 11.6 mm |
| Packaging | Reel | Mounting Type | Surface Mount |
| Connector Type | Plug, Outer Shroud Contacts | Contact Finish | Gold |
| Mounting Style | SMD/SMT | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Liquid Crystal Polymer (LCP) |

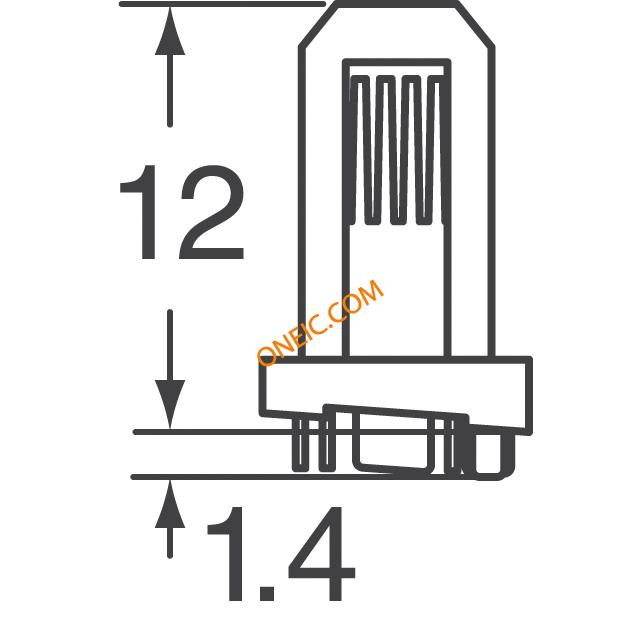

| Height Above Board | 0.472" (12.00mm) | Number of Contacts | 144 |
| Number of Positions | 144 | Mated Stacking Heights | 17.9mm |
| Contact Finish Thickness | 12µin (0.30µm) | ||
Product Info
| Features | Board Guide, Solder Retention | Function | Docking connector compatible for PCI Express |
| Product Type | PCI Express | ||
