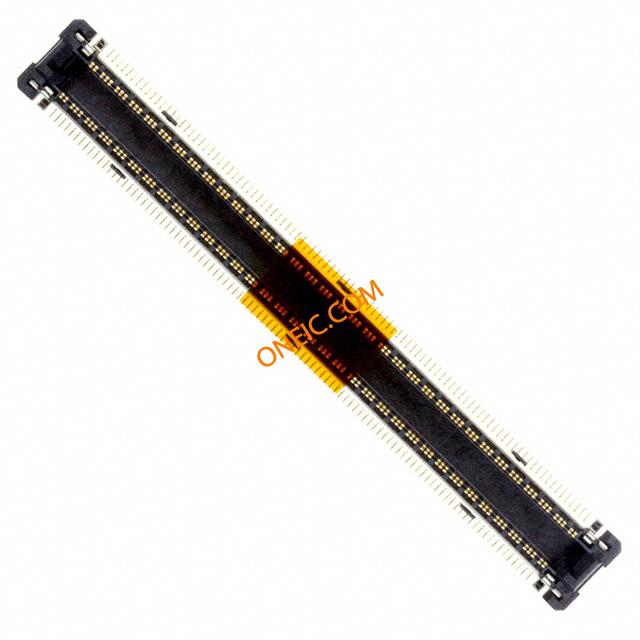

WB3M200VD1T
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors 200P .5mm PLUG VERTICAL CONN PLUG PCI EXPRESS 200POS SMD PCIExpress,BoardtoBoardConnector,Plug,20contact,StraightSMT,copperpl |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 670-1166 | Product Category | Board to Board & Mezzanine Connectors |
| Standard Package | 1 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 500 mA | ||
Mechanical
| Pitch | 0.020" (0.50mm) | Packaging | Tray |
| Mounting Type | Surface Mount | Connector Type | Plug, Outer Shroud Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |

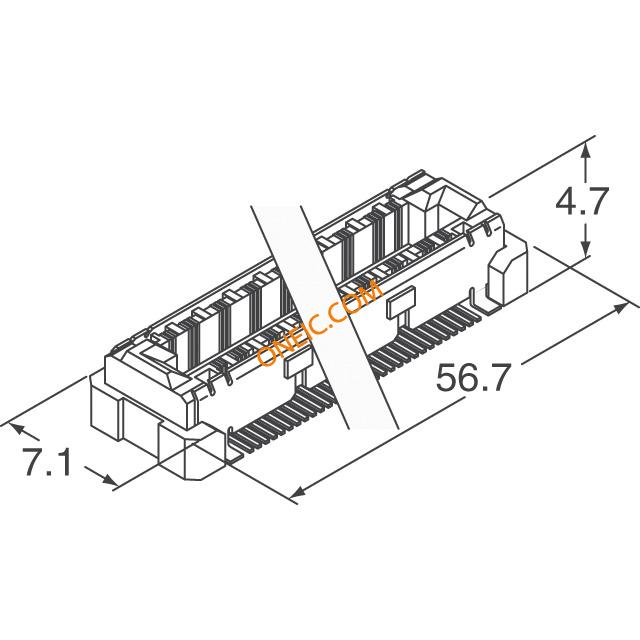

| Termination Style | SMD | Height Above Board | 0.185" (4.70mm) |
| Number of Contacts | 200 | Number of Positions | 200 |
| Mated Stacking Heights | 5mm | Contact Finish Thickness | 30µin (0.76µm) |
Product Info
| Series | WB3 | Features | Board Guide, Solder Retention |
| Product Type | Plugs | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
