ST9S008V4AR1500
| Manufacturer | |
| Description | Memory Card Connectors Micro SD Card Socket Compact CONN MICRO SD CARD 8POS TOP SMD CONN MICRO SD CARD 8POS TOP MNT Conn;Data;microSD;8+2Cnts;SMD/SMT;SF9Series;RtAngle;0.5A;10V;forMicroSDCard |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Card Connectors | Other Names | 670-2349-2 |
| Product Category | Memory Card Connectors | Standard Package | 1,500 |
| Factory Pack Quantity | 1500 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 10 V | Current Rating (Max) | 500 mA |
Mechanical

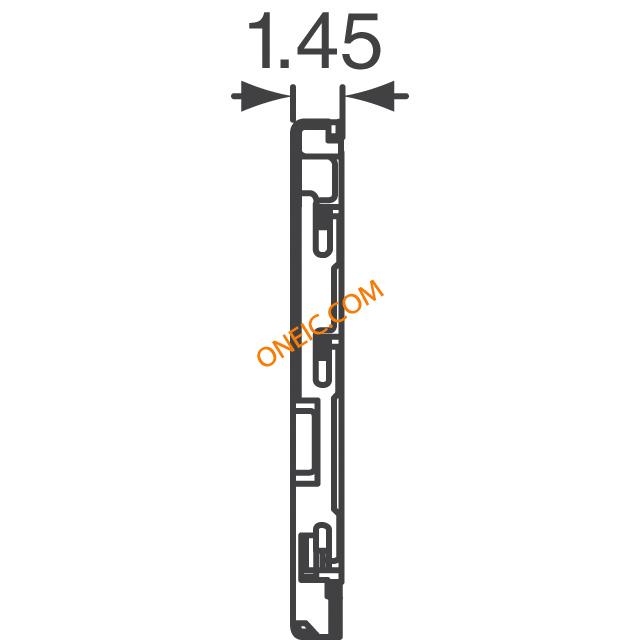

| Pitch | 1.1 mm | Height | 1.45 mm |
| Packaging | Tape & Reel (TR) | Orientation | Right Angle |
| Mounting Type | Surface Mount, Right Angle | Connector Type | Connector and Ejector |
| Contact Finish | Gold | Number of Rows | 1 |
| Contact Material | Copper Alloy | Mounting Feature | Normal, Standard - Top |
| Termination Style | SMD | Height Above Board | 0.057" (1.45mm) |
| Number of Contacts | 8 + 2 | Number of Positions | 10 (8 + 2) |
| Contact Finish Thickness | 20µin (0.51µm) | Insertion, Removal Method | Push In, Push Out |
Product Info
| Features | Switch | Card Type | Secure Digital - microSD™ |
Environmental
| Mating Cycles | 10000 | ||
