ST5S014V4AR800
| Manufacturer | |
| Description | メモリカード コネクタ Mem/SIM card Combo Micro SD CONN MICRO SD/SIM MEMORY SMD Memory Card Connectors Mem/SIM card Combo Micro SD Conn;Data;SIM;14+2Cnts;SMD/SMT;ST5Series;w/SimCard;0.5A;10V |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Card Connectors | Other Names | 670-1522-2 |
| Product Category | Memory Card Connectors | Standard Package | 800 |
| Factory Pack Quantity | 800 | ||
Compliance
| RoHS | Lead free / RoHS Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 10 V | Current Rating (Max) | 500 mA |
Mechanical

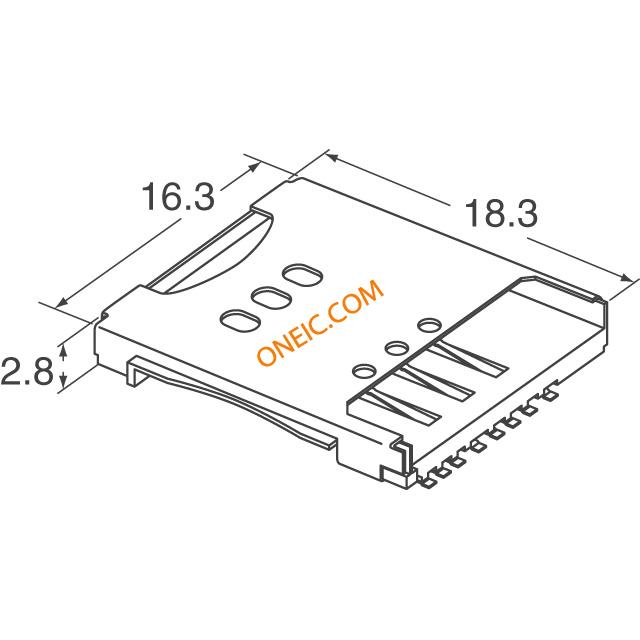

| Pitch | 1.1 mm | Height | 2.8 mm |
| Packaging | Tape & Reel (TR) | Orientation | Right Angle |
| Mounting Type | Surface Mount, Right Angle | Connector Type | Connector and Ejector |
| Contact Finish | Gold | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | Resin |
| Mounting Feature | Reverse - Bottom | Termination Style | SMD |
| Height Above Board | 0.110" (2.80mm) | Number of Contacts | 14 + 2 |
| Number of Positions | 16 (14 + 2) | Contact Finish Thickness | 20µin (0.51µm) |
| Insertion, Removal Method | Push In, Push Out | ||
Product Info
| Features | Switch | Card Type | Combo - microSD™, SIM |
Environmental
| Mating Cycles | 10000 | ||
