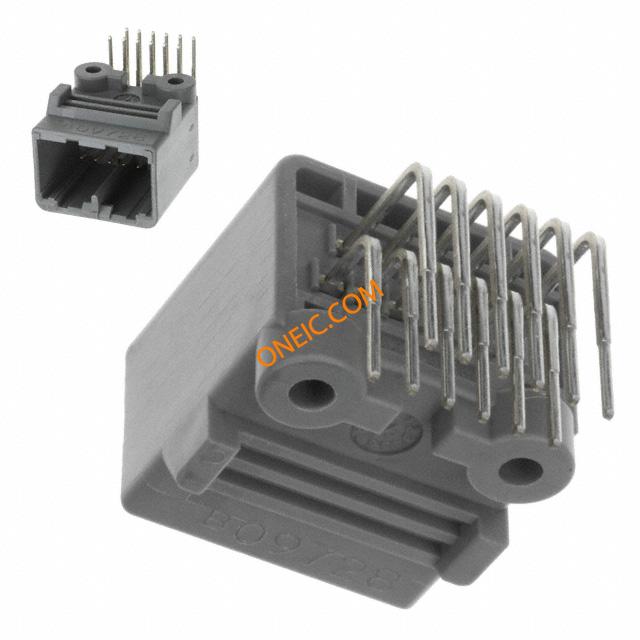

MX34012NF1
| Manufacturer | |
| Description | Automotive Connectors 12P 2.2mm R/A Pin Header CONN HEADER 12POS R/A 2.2MM TIN MX34,12WHDRR/A2ROW 12P PINHEADER RIGHTANGLE GRAY |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Other Names | 670-2285 |
| Product Category | Automotive Connectors | Standard Package | 27 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | Automotive | CERTIFICAT |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Current Rating (Max) | 3 A | Insulation Resistance | 100 MOhms |
Mechanical
| Color | Gray | Pitch | 0.087" (2.20mm) |
| Packaging | Tube | Row Spacing | 0.118" (3.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Thermoplastic | Material - Frame | GREY |
| Termination Style | Solder | Number of Contacts | 12 |
| Number of Positions | 12 | Contact Length - Mating | 0.303" (7.70mm) |
Product Info
| Gender | Male | Series | MX34 |
| Features | Board Lock | Terminstyle | CRIMP |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | - 40 C to + 85 C | ||
