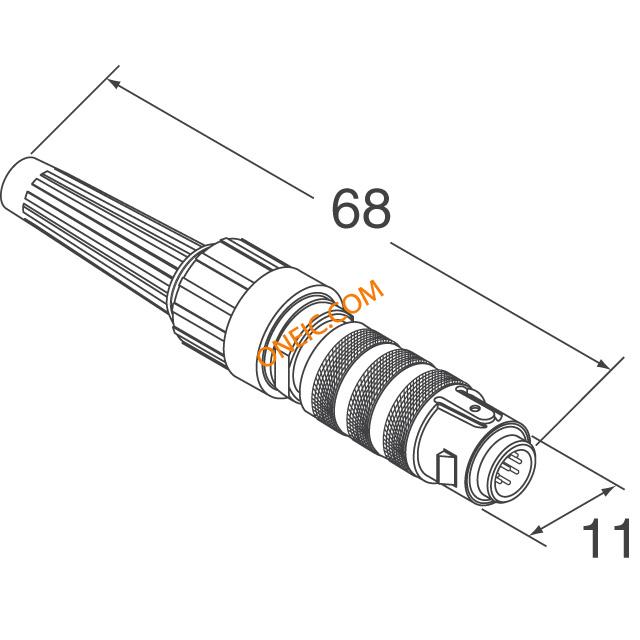

JB5DS08MN11
| Manufacturer | |
| Description | Standard Circular Connector 8P PLG W/SODER CUP CONN PLUG WATERPROOF 8POS SOLDER CIRCULARCONNECTOR-STRAIGHTPLUG-IP68,8CONTACTS 8WAY WATERPROOF SOLDER TYPE |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 670-1042 | Standard Package | 15 |
Compliance
| RoHS | RoHS Compliant Part | Automotive | NO |
| Leadfree Defin | RoHS-conform | ||
Electrical
| Voltage Rating | 200VAC | Current Rating (Max) | 2A |
Mechanical
| Packaging | Tray | Wire Gauge | 26 |
| Orientation | Keyed | Shell Style | Metal |
| Termination | Solder Cup | Contact Type | Pin |
| Mounting Type | Free Hanging (In-Line) | Angle of Throw | Straight |
| Cable Diameter | 4.5-5mm | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | FreeHanging | Housing Material | Metal |
| Primary Material | Sealed | Mating Orientation | Push-Pull |
| Number of Contacts | 8 | Number of Positions | 8 |
| Shell Size - Insert | S | Shell Material, Finish | Zinc, Nickel Plated |
Product Info
| Type | CablePlug | Manufacturer | JB5Series |
| Application Specifics | Commercial | ||
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -55°C ~ 85°C |
Documents & Media
Similar Parts

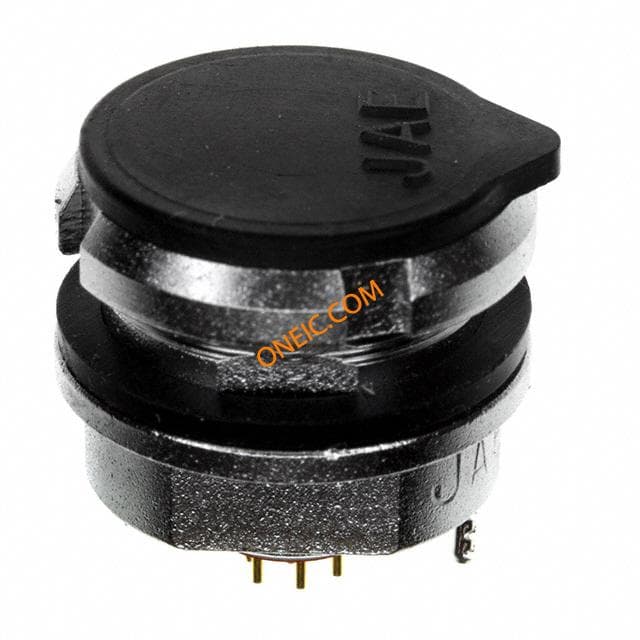

JB5CS08AN00
JAE Electronics
Standard Circular Connector 8p Panel mnt recep IP68 circ conn CONN RCPT WATERPROOF 8POS T/H RCPTCIRC8POST/HWATERPROOF
$124.3040
Details

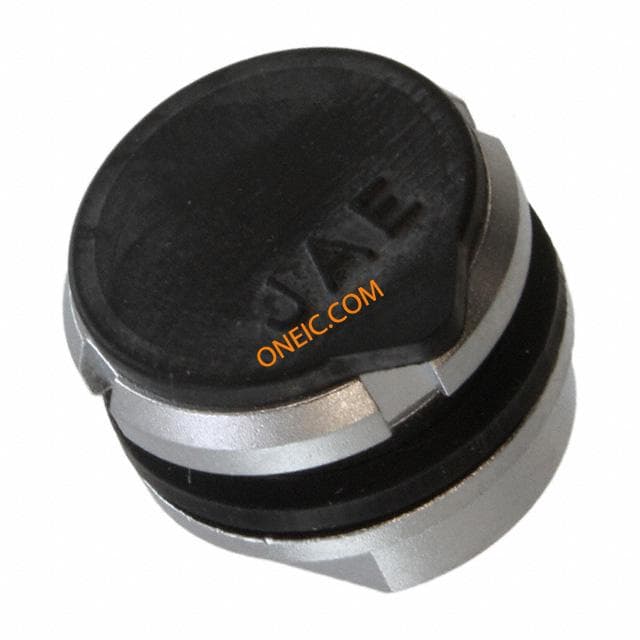

JB5CS08FN00
JAE Electronics
Standard Circular Connector 8P RECPT W/SDR CUP CONN RCPT WATERPROOF 8POS SOLDER CIRCULARCONNECTOR-PANELATTACHEDRECEPTACLE-IP68,8CONTACTS
$1617.4480
Details

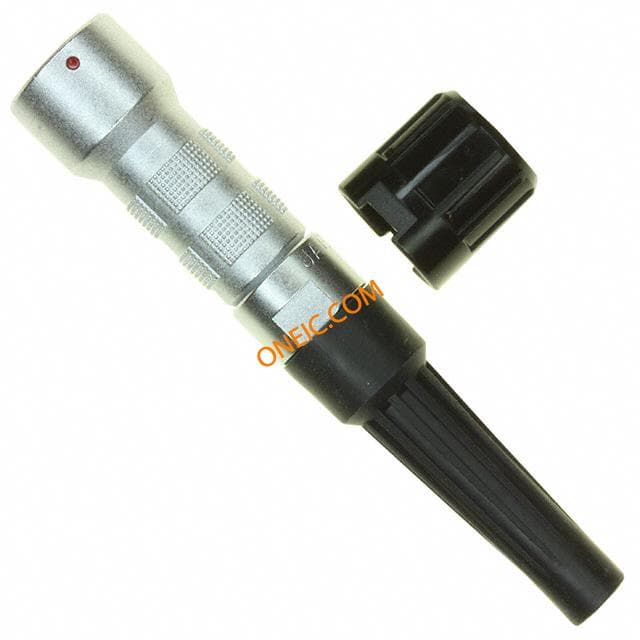

JB5HS08FN11
